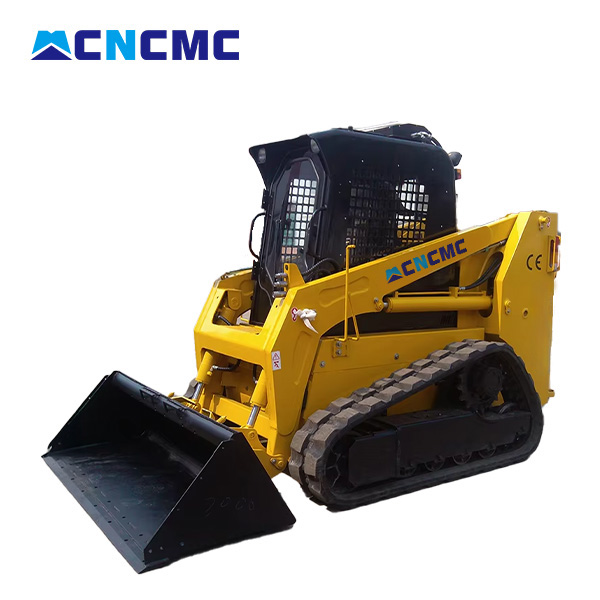

CNCMC TSC100 1200kg Bucket Capacity 0.55m³ 100Hp Skid Steer Loader
| Technical parameters/model | TSC100 |
| Overall operating height（mm） | 4070 |
| Height to bucket hinge pin（mm） | 3150 |
| Height to top of cab（mm） | 2160 |
| Height to bottom of level bucket（mm） | 2983 |
| Without bucket length（mm） | 3000 |
| Overall length with bucket（mm） | 3700 |
| Dumping angle at maximum height（°） | 40 |
| Dumping height（mm) | 2450 |
| Dumping reach(mm) | 700 |
| Rollback of bucket on ground（°） | 30 |
| Rollback of bucket at full height（°） | 104 |
| Wheelbase(mm) | 1500 |
| Ground clearance(mm) | 200 |
| Angle of departure(°） | 20 |
| Front turning radius without bucket(mm) | 1365 |
| Front turning radius (mm) | 2200 |
| Rear turning radius (mm) | 1742 |
| Rear axle to bumper (mm) | 938 |
| Tread width(mm) | 1654 |
| Width(mm) | 1994 |
| Bucket width(mm) | 2030 |
| Performacne parameters | |
| Model | TS100 |
| Operating load(kg) | 1200 |
| Max speed(km/h) | 9/18 |
| Rated flux（L/min） | 88 |
| High flow flux（L/min） | 140 |
| Tire(track) model | 320*86 |
| Rated power（kw） | 74 |
| Fuel tank capacity(L) | 90 |
| Self weight bucket(kg) | 4500 |
| Bucket capacity(m³） | 0.55 |
