Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction Detail:

Model 909ecr
Operating weight with cab 8700kg
Engine power 46.2kw(62.0 hp)@2200rpm
Bucket capacity 0.14-0.4m³
Maximum travel speed(heigh) 4.8km/h
Maximum travel speed(low) 2.4km/h
Maximum swing speed 10.5rpm
Arm breakout force 43/37kn
Bucket breakout force 63kn

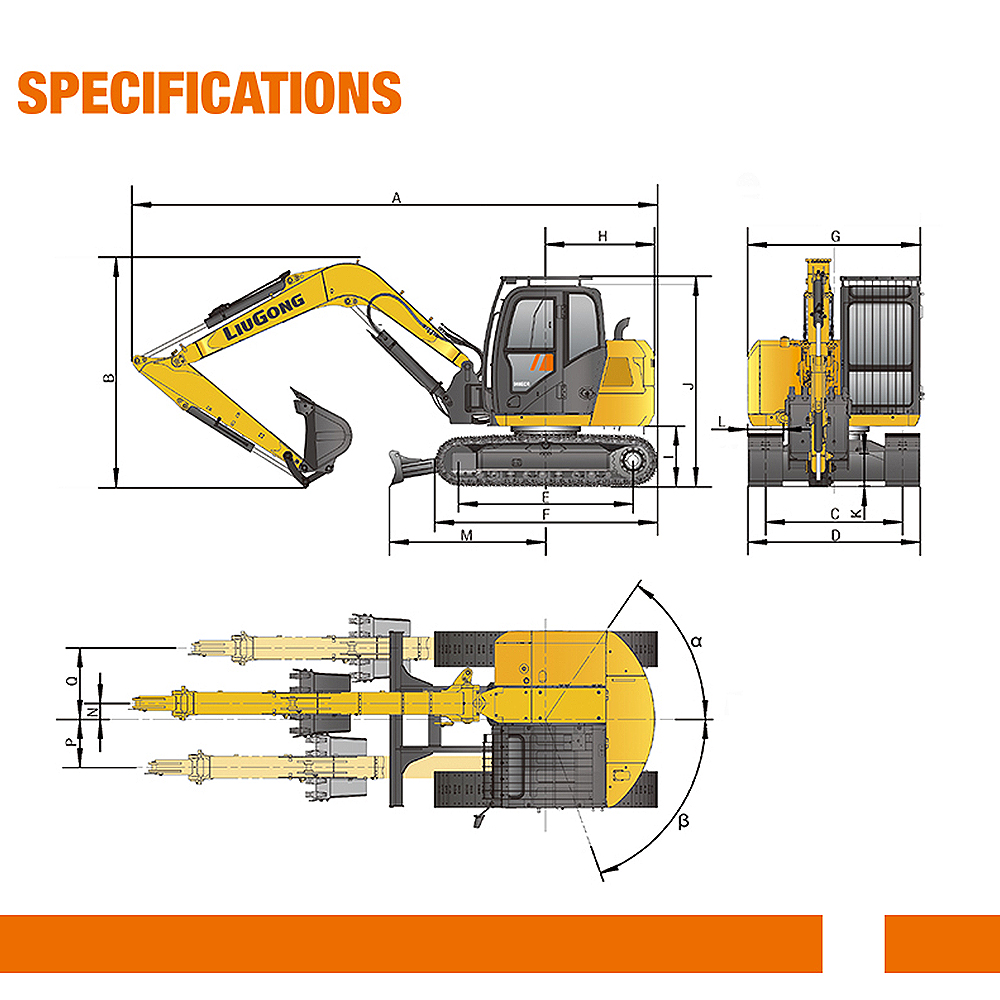

Shipping length 6115/6200mm
Shipping width 2400mm
Shipping height 2710mm
Track shoe width(std) 450mm

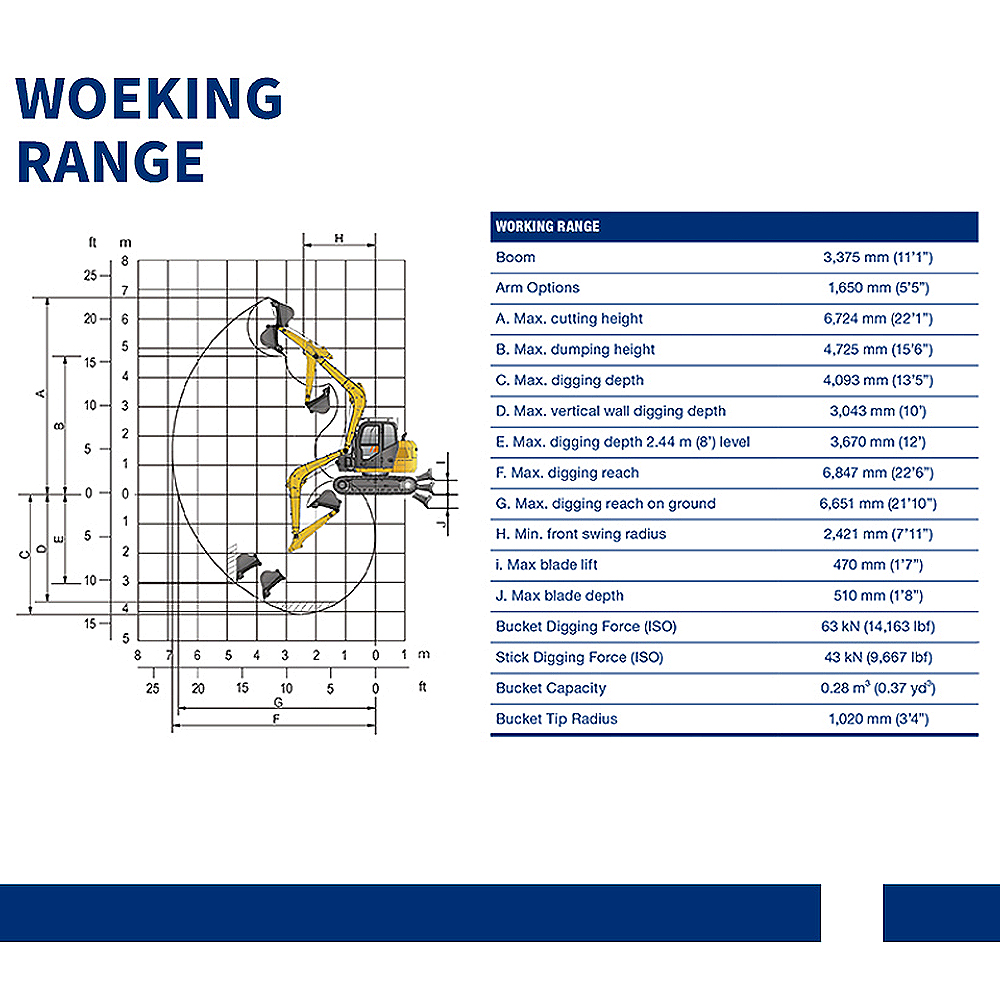

Boom 3375mm
Arm 1650/2100mm
Digging reach 6847/7264mm
Digging reach on ground 6651/7082mm
Digging depth 4093/4540mm
Vertical wall digging depth 3043/3963mm
Cutting height 6724/7016mm
Dumping height 4725/5000mm
Minimum front swing radius 2421mm
Dozer-up 470mm
Dozer-down 510mm
Swing boom left rotation 70°
Swing boom right rotation 55°
Model Yanmar 4TNV98C-SLY
Emission EU StageIIIB/EPA Tier 4F
System maximum flow 196L/min(52gal/min)
System pressure 28MPa

1
3
2
4


Product detail pictures:

Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction detail pictures

Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction detail pictures

Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction detail pictures

Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction detail pictures

Factory Cheap Hot Garden Digger - LIUGONG 9 ton 909ECR Hydraulic Crawler Excavators digger earthmoving machine – China Construction detail pictures
