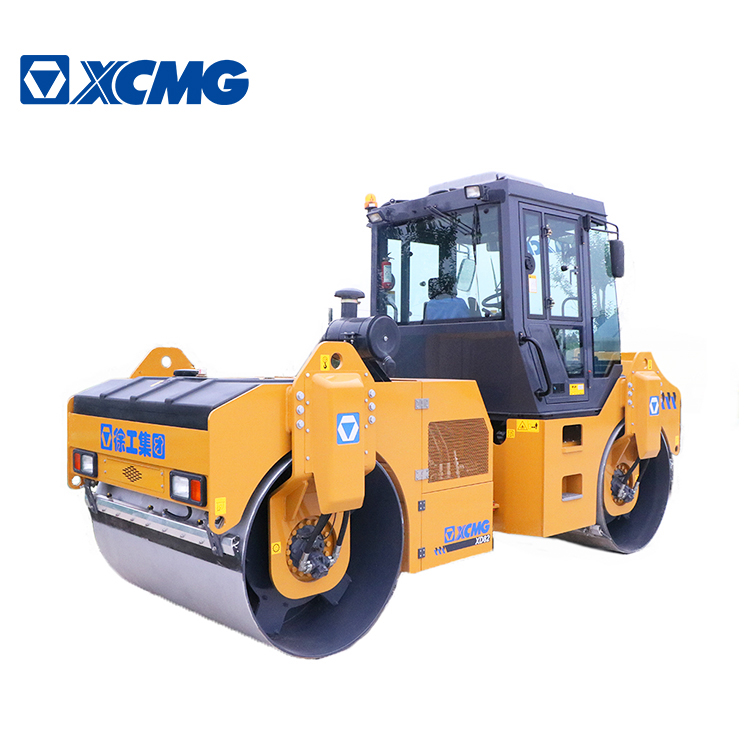

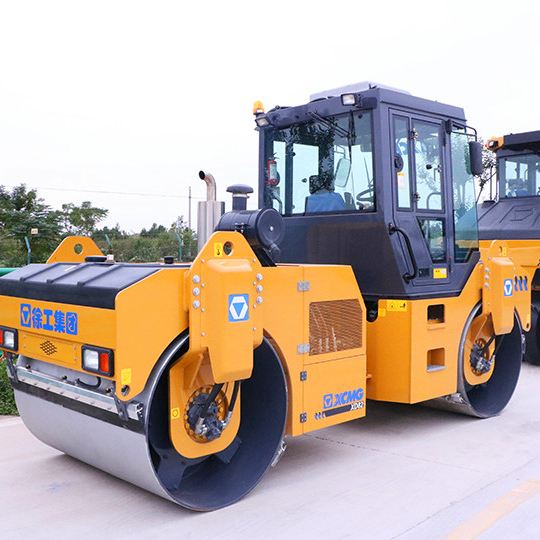

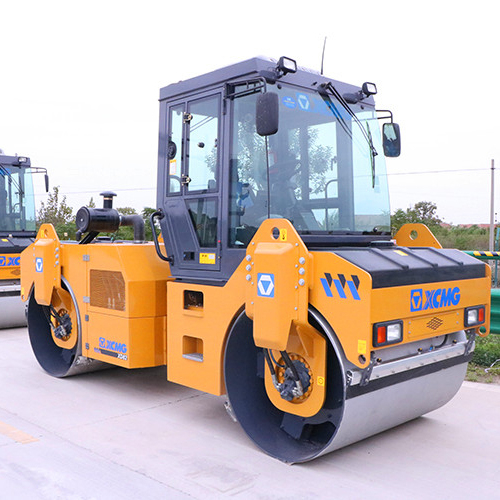

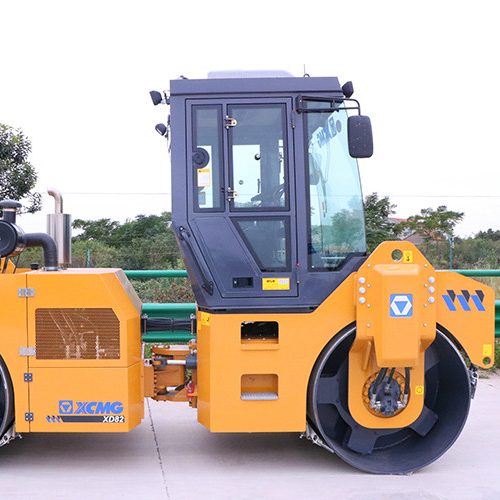

High definition Road Rollers - XCMG 8ton XD82 Road Roller Compactor Machine – China Construction
High definition Road Rollers - XCMG 8ton XD82 Road Roller Compactor Machine – China Construction Detail:
The steering wheel can adjust angle according to the need of the driver.
Control handle, display, etc. are arranged on the right side to broaden the front view. * Speed frequency management system guides the user to compaction operation.
Guiding the user to improve operation efficiency.
The vibration drum realizes the center of four-in-one combination.
Preventing the over-compaction and less-compaction.
Making the road surface more even.
Double-sealing technology.
Dual frequency dual amplitude vibration system.
Independent vibration of front and rear drum.
|
Parameter |
Unit |
XD82 |
|
|
Weight distribution |
Working weight |
kg |
8500 |
|
Front wheel distribution weight (kg) |
4250 |
||
|
Rear wheel distribution weight (kg) |
4250 |
||
|
Compaction performance |
Static linear load |
N/cm |
248/248 |
|
Nominal amplitude |
mm |
0.35/0.70 |
|
|
Vibration frequency |
Hz |
48/45 |
|
|
Exciting force (high frequency/low frequency) |
kN |
40/80 |
|
|
Vibration wheel size |
mm |
1150×1680 |
|
|
Maneuverability |
Speed range |
km/h |
0~9.5 |
|
Theoretical gradeability |
% |
30 |
|
|
Minimum turning radius mm (in/out) |
4100/5780 |
||
|
Swing angle |
° |
±8 |
|
|
Steering angle |
° |
±38 |
|
|
Engine |
model |
DEUTZ BF4M2012-10T3R |
|
|
Type |
Inline four-cylinder pressurized water-cooled |
||
|
Rated power |
kW |
74.9 |
|
|
Rated speed |
r/min |
2300 |
|
