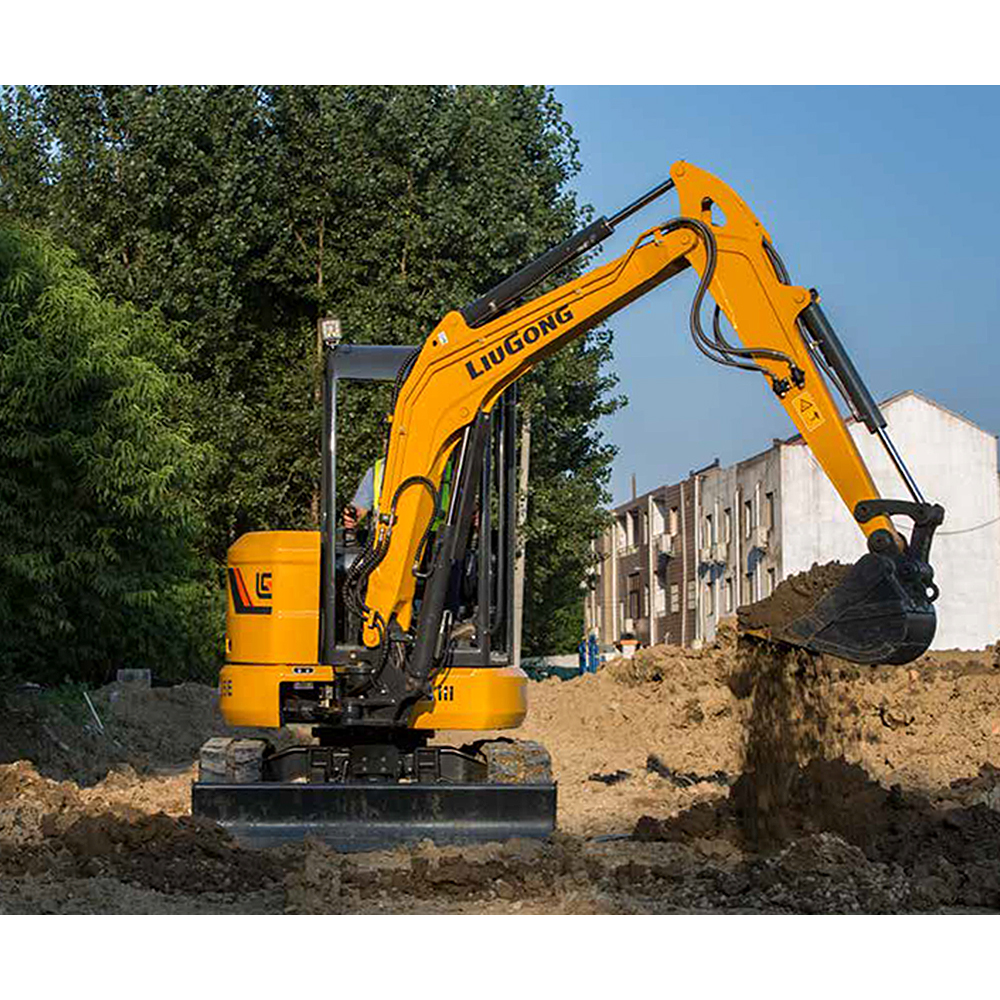

Hot New Products Mini Digger - LIUGONG 3ton Competitive Price 9035E Hydraulic crawler Excavators From China on sale earthmoving machine – China Construction
Hot New Products Mini Digger - LIUGONG 3ton Competitive Price 9035E Hydraulic crawler Excavators From China on sale earthmoving machine – China Construction Detail:
Global procurement of key parts and components, using international advanced brand products, strong alliances, complementary advantages, higher and more reliable performance.
850mm zero-rotation body, wherever you can go, easy to achieve 360° free rotation operation;
120° boom deflection and zero-tail rotation are tacitly matched, and there is no dead angle in corner operations;
Whether it is a closed or open cab, a standard stick with greater digging force or a longer stick with a larger working range, rubber tracks on paved roads or steel tracks on non-paved roads, you can easily choose.

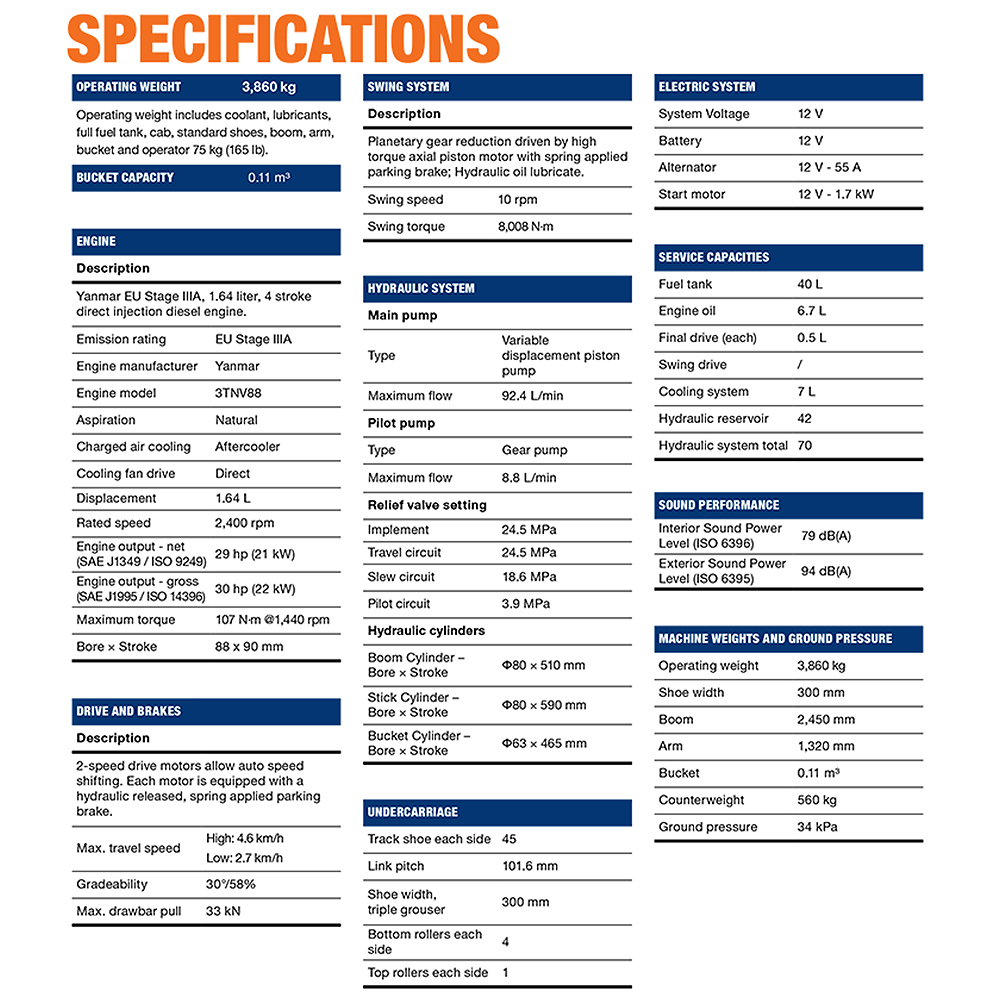

| Operating weight with cab | 3980 kg |
| Operating weight with canopy | 3860 kg |
| Engine power | 18.2 kW (24.4 hp) @ 2200 rpm |
| Bucket capacity | 0.06-0.3 m³ |
| Maximum travel speed (High) | 4.6 km/h |
| Maximum travel speed (Low) | 2.7 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 20/17.8 kN |
| Bucket breakout force | 30 kN |

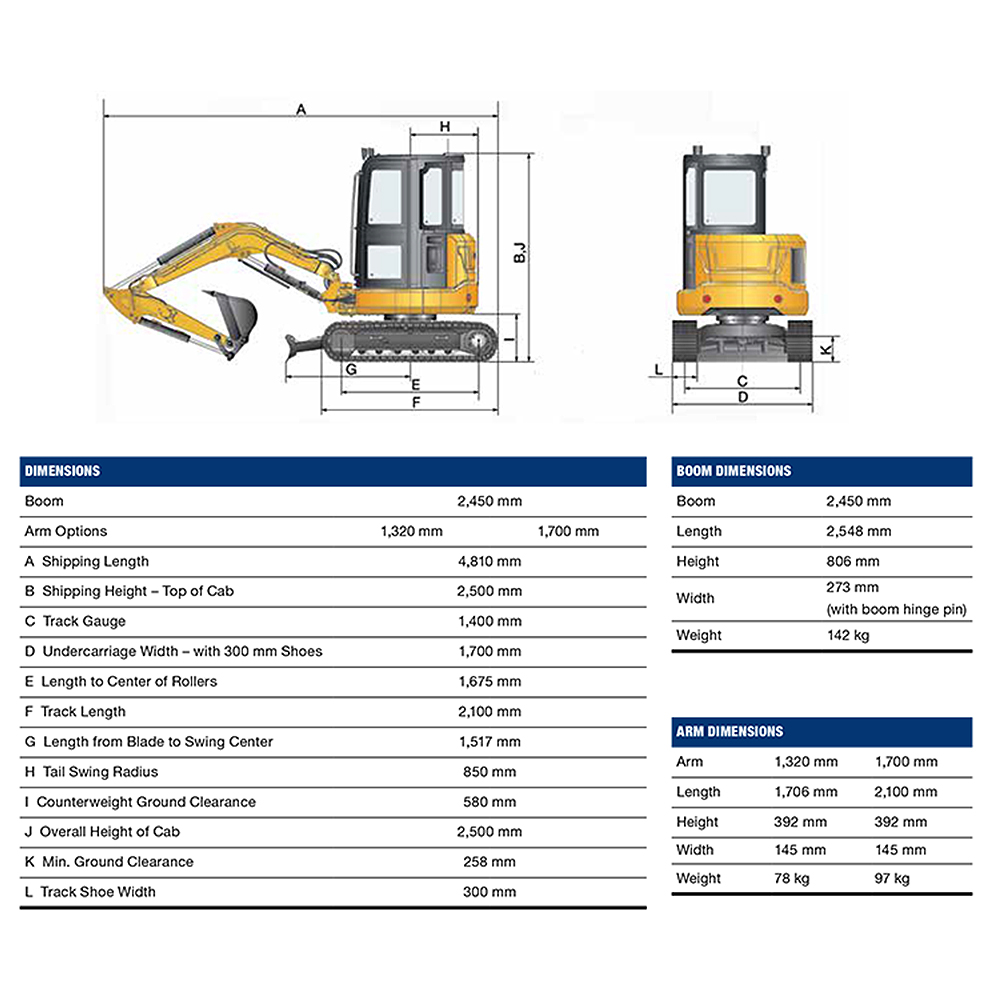

| Shipping length | 4810 / 4860 mm |
| Shipping width | 1700 mm |
| Shipping height | 2500 mm |
| Track shoe width (std) | 300 mm |
| Boom | 2450 mm |
| Arm | 1320 / 1700 mm |
| Digging reach | 5385 / 5715 mm |
| Digging reach on ground | 5270 / 5603 mm |
| Digging depth | 3085 / 3440 mm |
| Vertical wall digging depth | 2503 / 2713 mm |
| Cutting height | 4710 / 4843 mm |
| Dumping height | 3310 / 3463 mm |
| Minimum front swing radius | 2416 / 2413 mm |
| Dozer-up | 370 mm |
| Dozer-down | 390 mm |
| Swing boom left rotation | 70 ° |
| Swing boom right rotation | 50 ° |
| Engine Model | 3TNV88F-ESLY |
| Emission | EPA Tier 4 Final |
| System maximum flow | 92.4 L/min ( 24 gal/min) |
| System pressure | 24.5 MPa |
Product detail pictures:
