Low MOQ for Front Loader Tractor - LIUGONG 3 ton New Hot Sale wheel loader for sale earthmoving machine CLG 835H – China Construction
Low MOQ for Front Loader Tractor - LIUGONG 3 ton New Hot Sale wheel loader for sale earthmoving machine CLG 835H – China Construction Detail:
1. 835H is a new generation of 3T products with beautiful appearance, excellent performance, solid and reliable, high efficiency and energy saving.
2. Equipped with planetary gearbox, it has large capacity and good controllability.
3. More efficient cooling system, fully meet the needs of continuous operation in harsh environment.
4. With safe and comfortable driving environment, first-class maintenance convenience, greatly improve the driving experience, reduce labor intensity.
The enlarged cab allows gives the operator excellent 360 degree visibility including the working instruments, and the rear of the machine. This makes operation easier and much safer.
| Model | 835H |
| Rated load | 3000Kg |
| Operating weight | 10200Kg |
| Rated bucket capacity | 1.7m3 |
| Max. breakout force | 90kN |
| Max. dump clearance | 3160mm |
| Dump reach | 1050mm |
| Dump angle at any position | ≥45° |
| Digging depth(with bucket bottom horizontal) | 212mm |
| Min. turning radius | |
| Outside of bucket | 5600mm |
| Outside of rear wheel | 5205mm |
| Oscillating angle of rear axle | ±11° |
| Lifting time of bucket | ≤5.8s |
| Lowering time of bucket | ≤3.77s |
| Dumping time | ≤1.43s |
| Working Equipment | |
| Model of oil pump | CBGj2100 |
| System pressure | 16Mpa |
| Model of multi-way directional valve | DF25.2C |
| Pilot valve | DJS2-UX/UU |
| Axle And Tyre | |
| Type of main reducer | Spiral bevel gear, single stage |
| Gear ratio of main reducer | 5.286 |
| Type of final reducer | Single stage planetary |
| Gear ratio of final reducer | 4.75 |
| total ratio | 25.1 |
| Max. tractive force | 93.5kN |
| Tyre size | 17.5-25 |
| Transmission System | |
| Torque Converter | |
| Type | 3-elements,single stage(Shantui) |
| Torque ratio | 3.1 |
| Cooling type | Pressure oil circulating |
| Gear box | |
| Type | Power shift(China advance) |
| Gear shifts(Forward/Reverse) | F4/R2 |
| Traveling speed(Km/h) | |
| Forward/Reverse | 7.7/9.5 |
| Forward/Reverse | 13/18 |
| Forward | 25 |
| Forward | 40 |
| Braking System | |
| Service brake | Air over oil activate 4 wheel brake with capliar disc brake |
| Air pressure | 0.68Mpa |
| Parking brake | Draper -type soft axle control |
| Steering System | |
| Type | Middle articulated frame. Co-axis flow amp.steering |
| Model of steering pump | CBGj2050 |
| Model of redirector | BZZ5-E400C |
| System pressure | 14MPa |
| Articulated steering angle | 38±1°(L/R) |
| Dimensions | |
| Length(with bucket on ground) | 7135mm |
| Width(to outside of wheels) | 2350mm |
| Height(To the top of the cab) | 3300mm |
| Bucket width | 2440mm |
| Wheel base | 2750mm |
| Tread | 2050mm |
| Ground clearance | 395mm |
| Service Capacities | |
| Fuel tank | 140L |

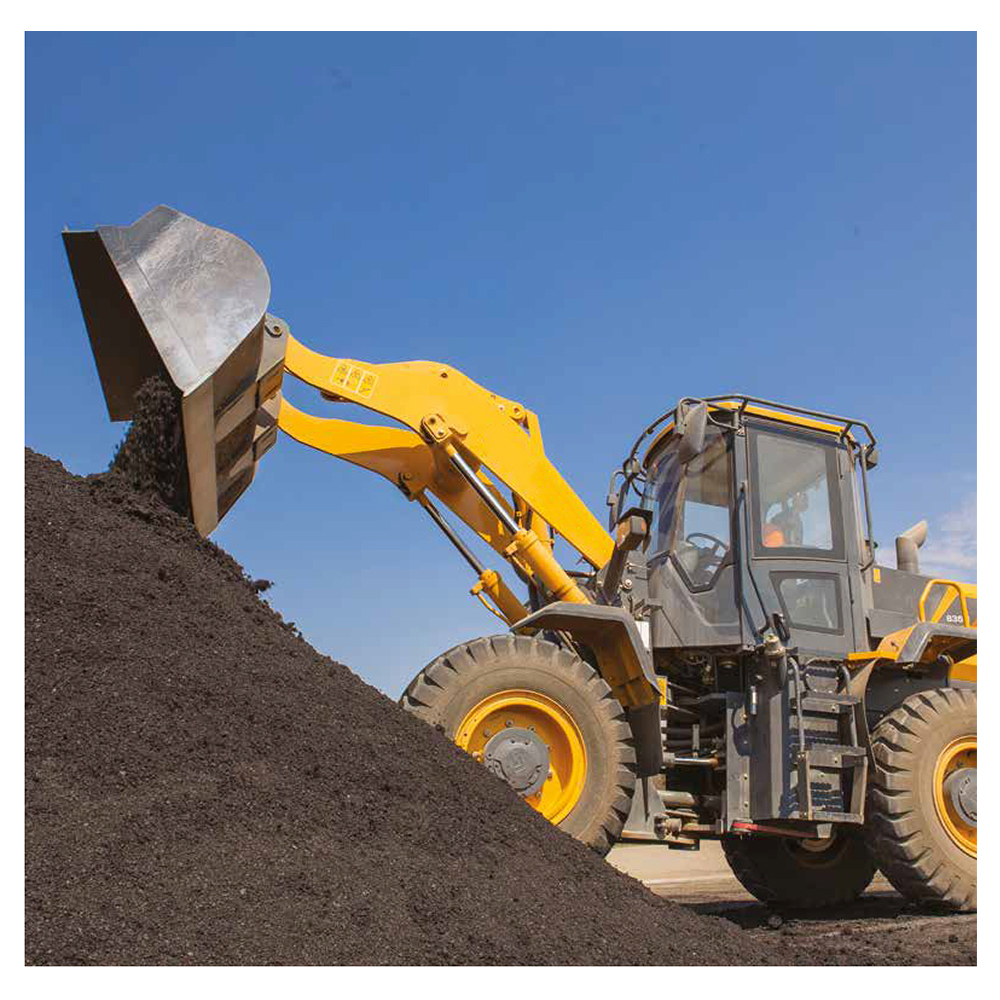

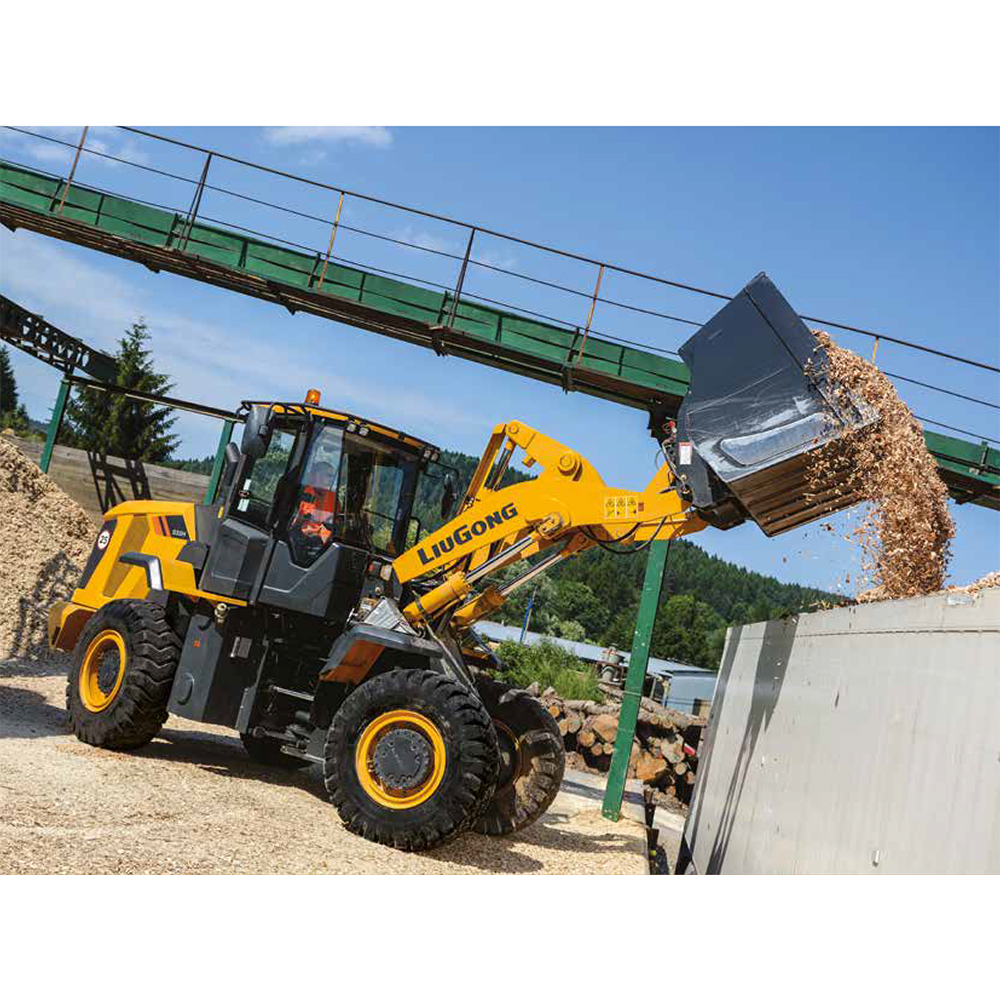

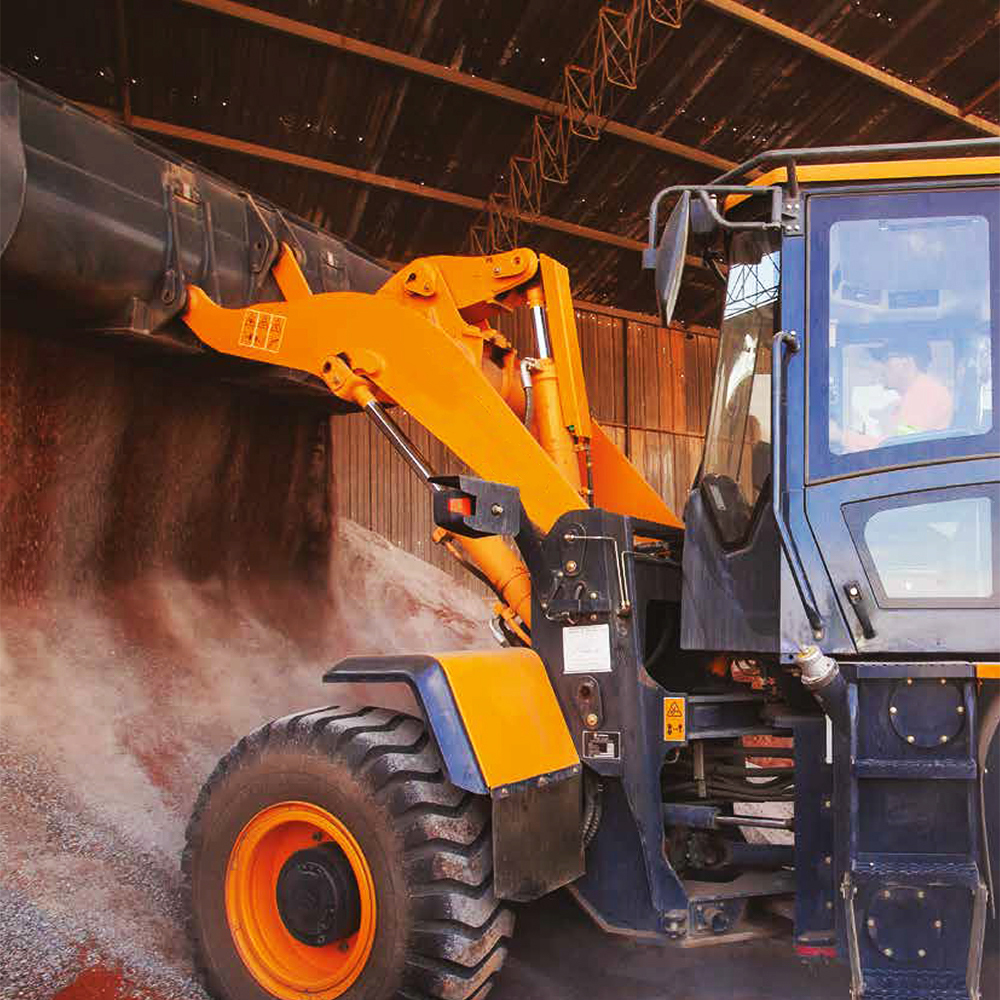

Product detail pictures:
