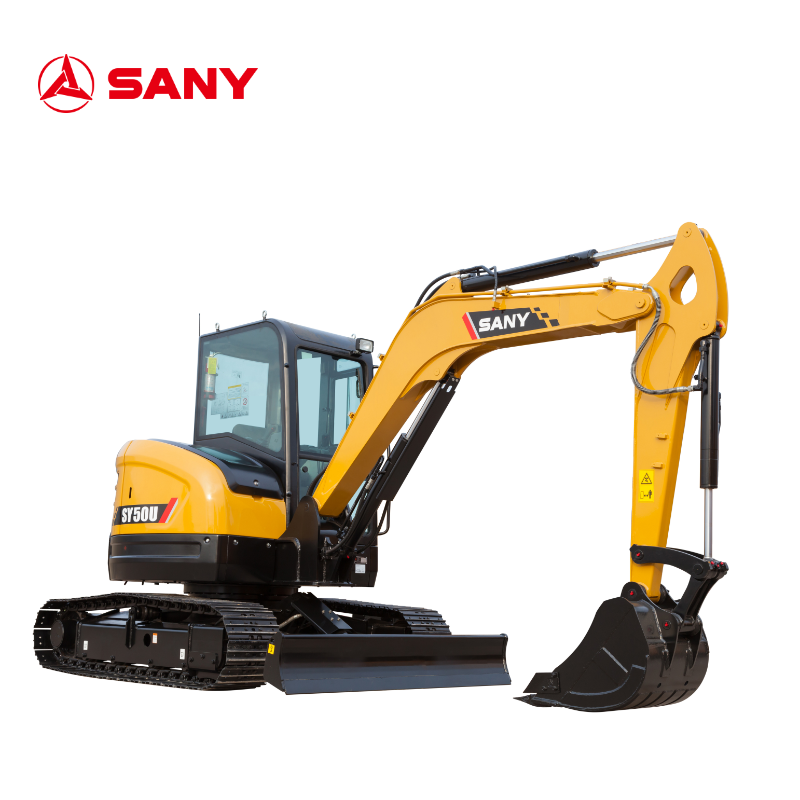

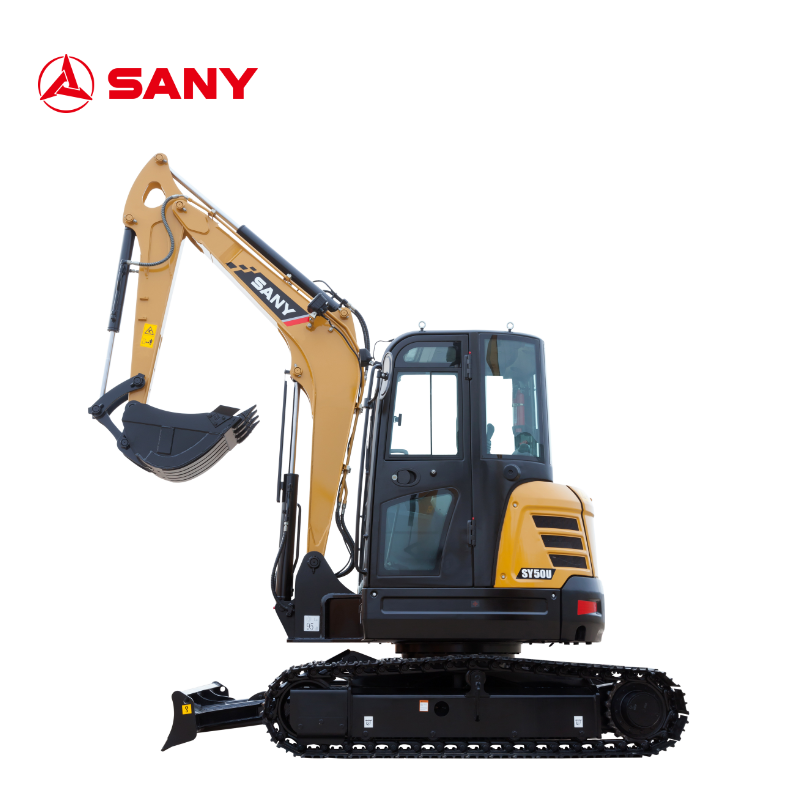

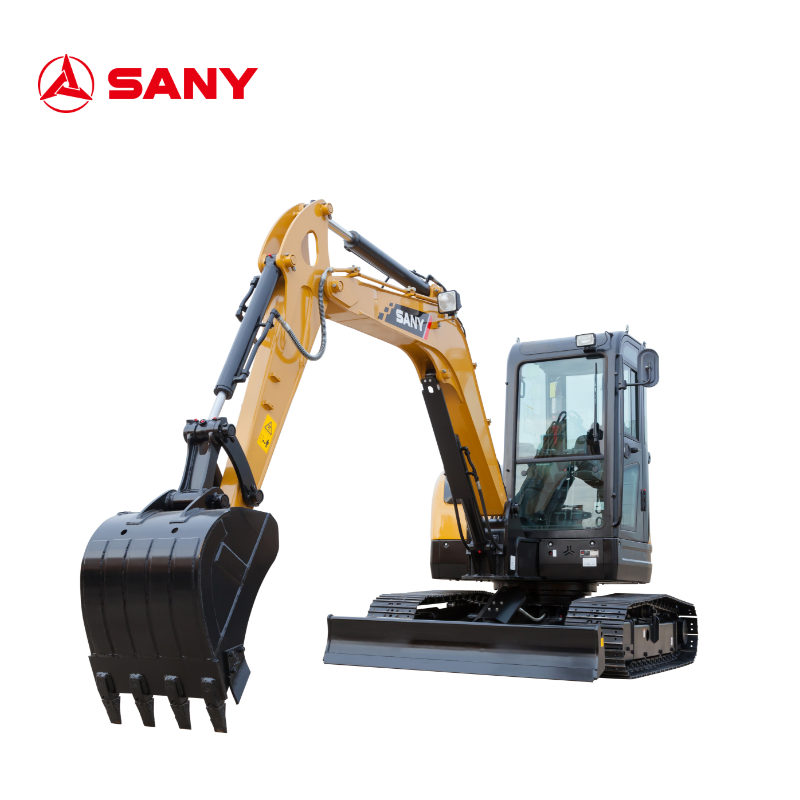

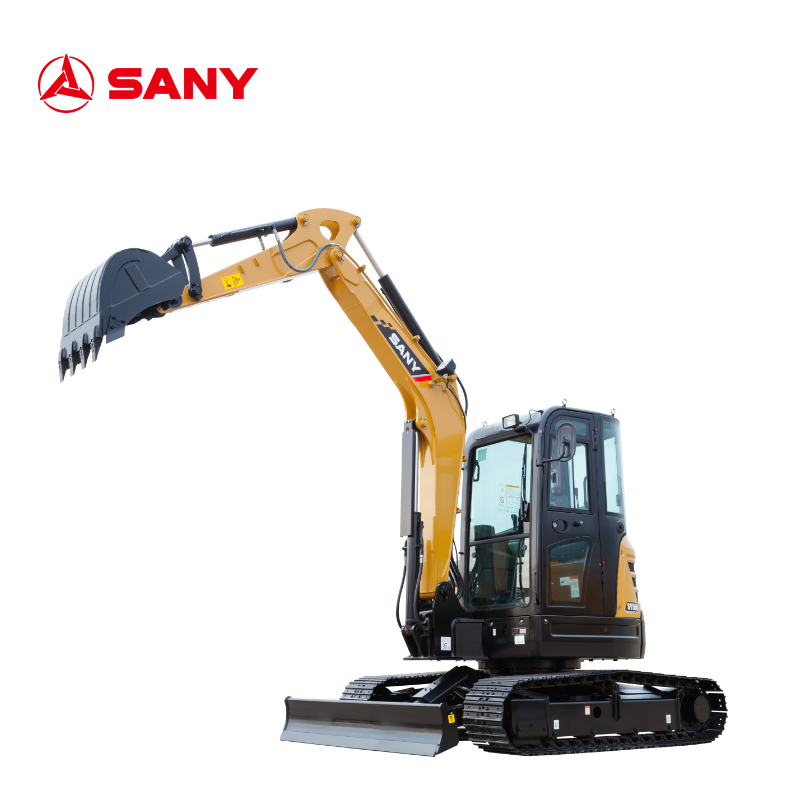

OEM/ODM China Mini Bagger - SANY 5 Ton SY50U High Quality Sany Chinese Tailless Excavator – China Construction

Model

SY16C

SY16C(T4f)

SY18C(T4f)

SY26U(T4f)

SY35U(T4f)

SY35U

SY50U(T4f)

Arm Digging Force

9.2KN

9.2KN

9.2KN

14.39KN

18.2KN

18.2KN

22.9KN

Bucket Capacity

0.04m³

0.04m³

0.04m³

0.06m³

0.12m³

0.12m³

0.15m³

Bucket Digging Force

15.2KN

15.2KN

15.2KN

27.4KN

30.4KN

30.4KN

32.5KN

Carrier Wheel on Each Side

/

/

/

1

1

1

1

Engine Displacement

0.854L

1.267L

1.267L

1.267L

1.6L

1.642L

2.19L

Engine Model

3TNV70

3TNV80F

3TNV80F

3TNV80F

3TNV88 Tier 4 final

3TNV88

4TNV88-PSY

Engine Power

10.3kW

14.6kW

14.6kW

15.2kW

18.2kW

19.6kW

29.1kW

Fuel Tank

23L

23L

23L

34L

40L

50L

78L

Hydraulic Tank

21L

21L

21L

30L

40L

40L

52L

Operating Weight

1.85T

1.75T

1.85T

2.76T

3.86T

3.78T

5.3T

Radiator

3.8L

3.8L

3.8L

2.4L

6.7L

6.5L

4.2L

Standard Boom

1.81m

1.81m

1.81m

2.1m

2.54m

2.54m

2.7m

Standard Stick

1.13m

1.13m

1.13m

1.3m

1.4m

1.4m

1.5m

Thrust Wheel on Each Side

3

3

3

3

4

4

4

Gradeability

58%

30°

30°

25%

58%

30°

30°

Rated power

10.3/2200 kW/rpm

14.6/2400 kW/rpm

14.6/2400 kW/rpm

15.2/2500 kW/ rpm

20.4/2200 kW/rpm

18.2/2400 kW/rpm

29.1 / 2400 kW/rpm

Max. torque

64.7 Nm / 1800rpm

64.7 Nm / 1800rpm

64.7 Nm / 1800rpm

64.7 Nm/1800rpm

94.2 Nm / 1320rpm

94.2 Nm / 1320rpm

144.9 Nm / 1500rpm

Transport dimensions

3575*980*2420

3575*980*2420

3575*980*2420

4285*1550*1620

4915*1720*2515

4915*1720*2515

5390*1960*2630
