Online Exporter Excavator Machine - LIUGONG 15 Tons China Mini Excavator Machine 915E – China Construction Detail:

Proven negative flow hydraulics have optimize the main control valve, improved the speed of front end cylinders, while cutting down the hydraulic system’s damper loss, leading to much better working efficiency. The pilot valves matching with the main control valve offer precise control.

The 915E model is powered by the latest generation, low emission engine, with enhanced power output, improved breakout force and faster cycle times.

The LiuGong E series excavator features 6 selectable working modes that optimize performance and fuel consumption to your specific conditions

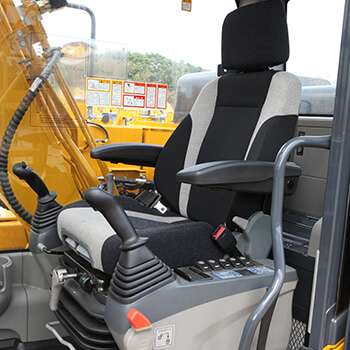

Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment

Operating weight with cab	13800 kg
Engine power	86 kW (115 hp/117 ps) @ 2200 rpm
Bucket capacity	0.36 – 0.73 m³
Maximum travel speed (High)	5.1 km/h
Maximum travel speed (Low)	3.3 km/h
Maximum swing speed	12.94 rpm
Arm breakout force	64.9 kN
Arm breakout force Power boost	70 kN
Bucket breakout force	89.8 kN
Bucket breakout force Power boost	96.9 kN
Shipping length	7750 mm
Shipping width	2490 mm
Shipping height	2930 mm
Track shoe width (std)	500 mm
Boom	4600 mm
Arm	2500 mm
Digging reach	8300 mm
Digging reach on ground	8170 mm
Digging depth	5470 mm
Vertical wall digging depth	4770 mm
Cutting height	8760 mm
Dumping height	6310 mm
Minimum front swing radius	2470 mm
Model	Cumz QSF 3.8
Emission	Stage IIIA
System maximum flow	2×120 L/min (2×32 gal/min)
System pressure	34.3 MPa

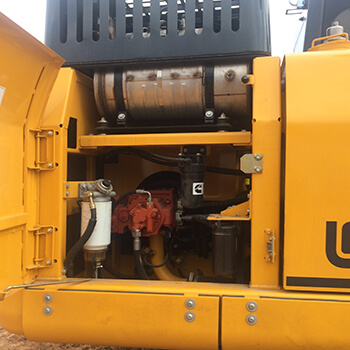

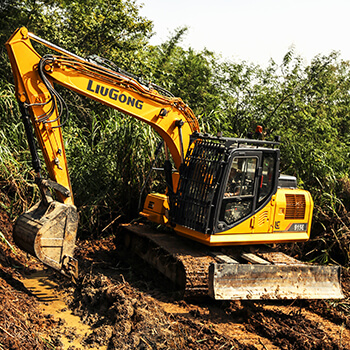

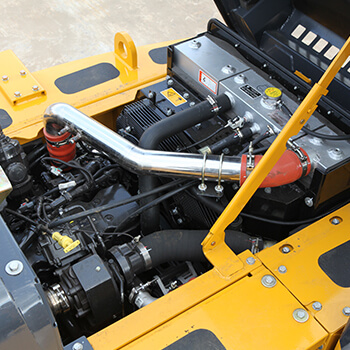

Product detail pictures:
