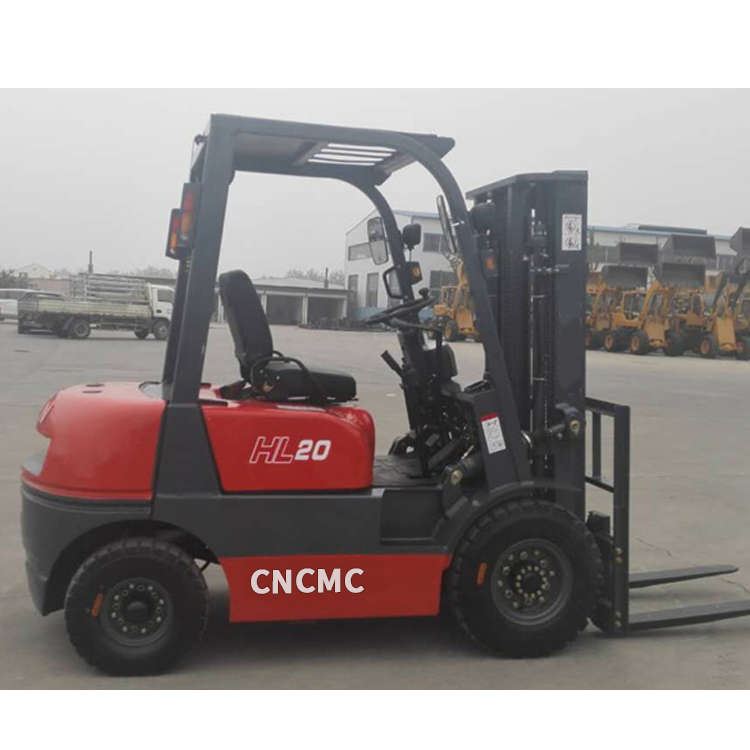

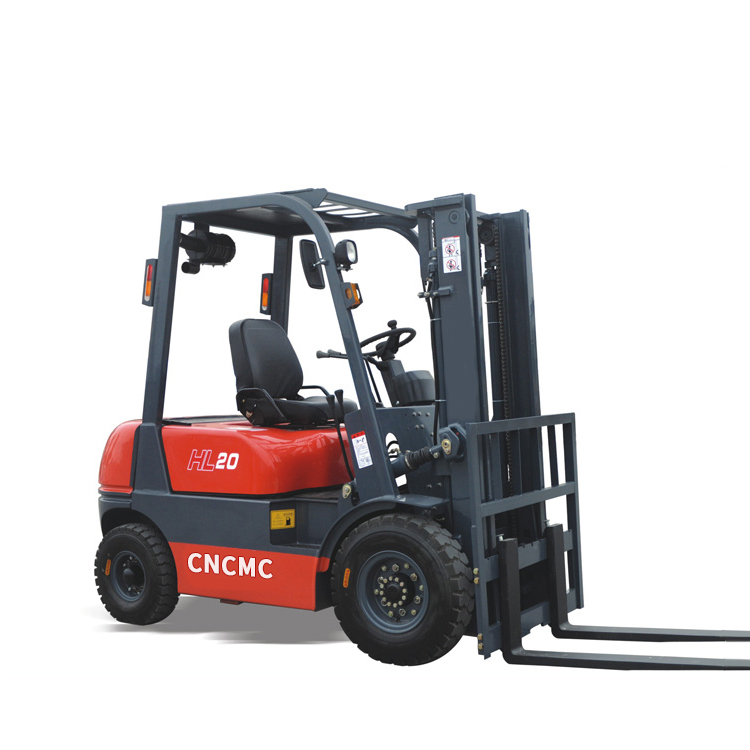

Wholesale Price Small Rough Terrain Forklift - CNCMC HT Series 1.5T-3.5T Diesel Forklift – China Construction Detail:

Standard configuration:

Xinchai 485 diesel engine

Zhongnan Machinery Transmission

Two-section three-meter gantry

Zhengxin tires

Fork 1070mm

Toolbox/Repair Kit

Performance introduction:

equipped with Xinchai engine, strong performance, energy saving and environmental protection

Zhongnan gearbox, smooth shifting and comfortable operation

Linde steering axle, Bengbu hydraulic cylinder, SMC silent heat insulation hood

Hongchang high-quality gantry steel, long life, not easy to deform

Positive new tires, strong wear resistance, good shock absorption effect

Optional configuration:

Xinchai engine, Quanchai engine, Jiangling engine

Imported Isuzu engine, imported Mitsubishi engine

Mechanical gearbox, manual hydraulic gearbox, electromagnetic hydraulic gearbox

Two sections of 3.0m, 3.3/3.5/4.0/4.5/5.0m gantry

Two sections of 3.0 meters, 3.3/3.5/4.0/4.5/5.0 meters full free gantry

Three sections of 4.5 meters, 4.8/5.0/5.5/6.0/6.5 meters full free gantry

Positive new pneumatic tires/solid tires, Chaoyang pneumatic tires/solid tires, environmentally friendly solid tires

Different attachments can be assembled according to different goods, such as side shift, cotton bale clip, paper roll clip, carton clip, etc.

Model	cpc15	model	cpc20
power	diesel fuel	full length without fork	2265mm
rated load	1500kg	overall width	920mm
load center	500mm	maximum lifting height of fork(with shelf)	4220mm
lifting height	3000mm	floor height of mast	2100mm
free lifting height	0mm	front wheel	6.5-15-10pr
fork size	107010035mm	rear wheel	5-8-8pr
mast inclination front/rear	6 / 12	wheelbase	1280mm
minimum turning radius	1950mm	wheel base front wheel/rear wheel
minimum right-angle stacking channel width	1950mm	weight without load	3300kg
minimum right-angle channel width	3800mm	battery voltage/capacity	12/100(v/ah)
minimum ground clearance	120mm	engine model	xinchai485
height of overhead guard	2090mm	rated power	32/260(kw/r·p·m）
front overhang		rated torque	135/1600-1800(Nm/r·p·m)
maximum driving speed full load	460mm/m	bore x stroke	85x100mm
maximum traction full load	14kn	number of cylinders	4
maximum climbing ability	20%	displacement	2.27L
full length with fork	3335mm	fuel tank capacity	60L

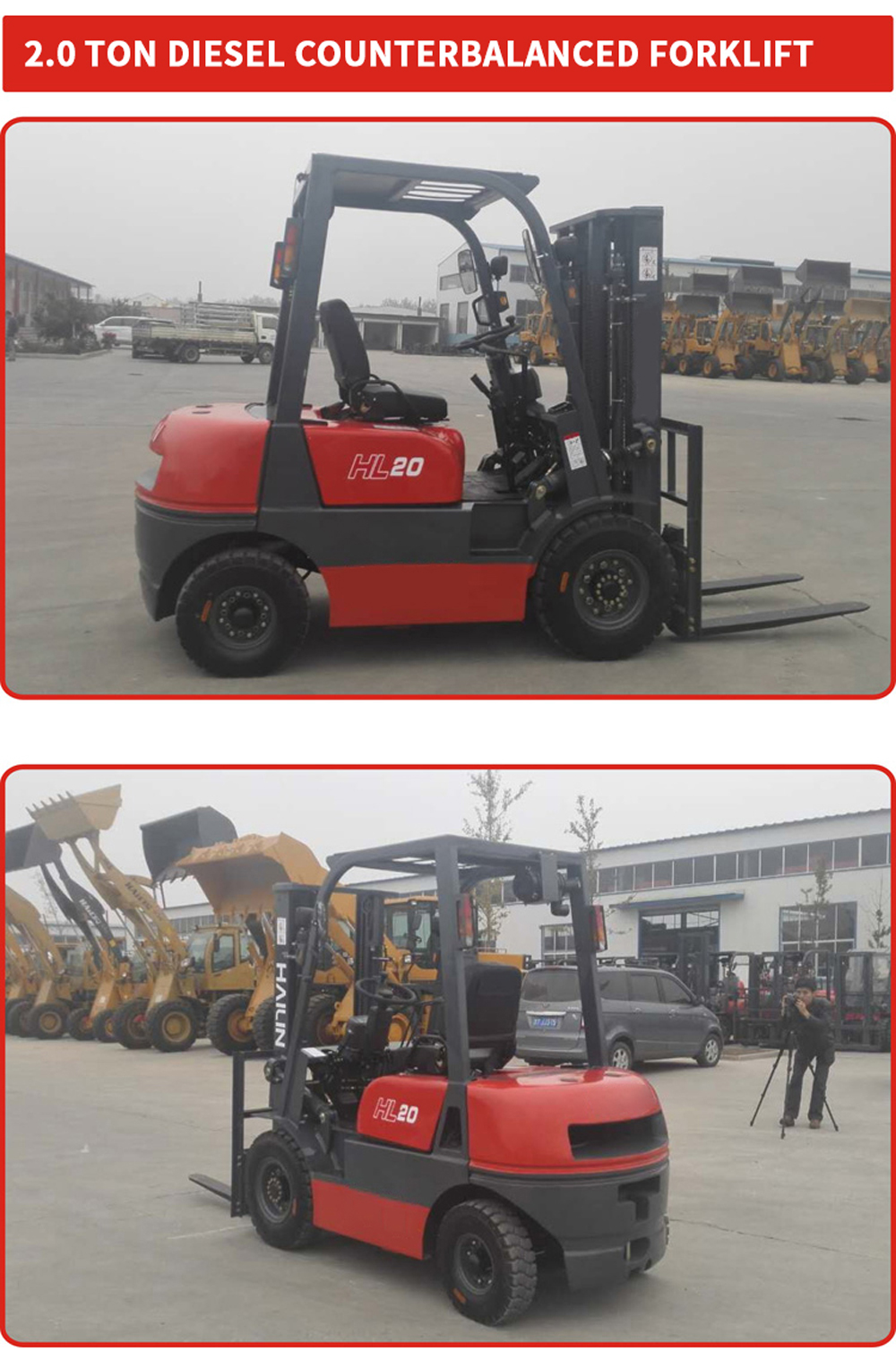

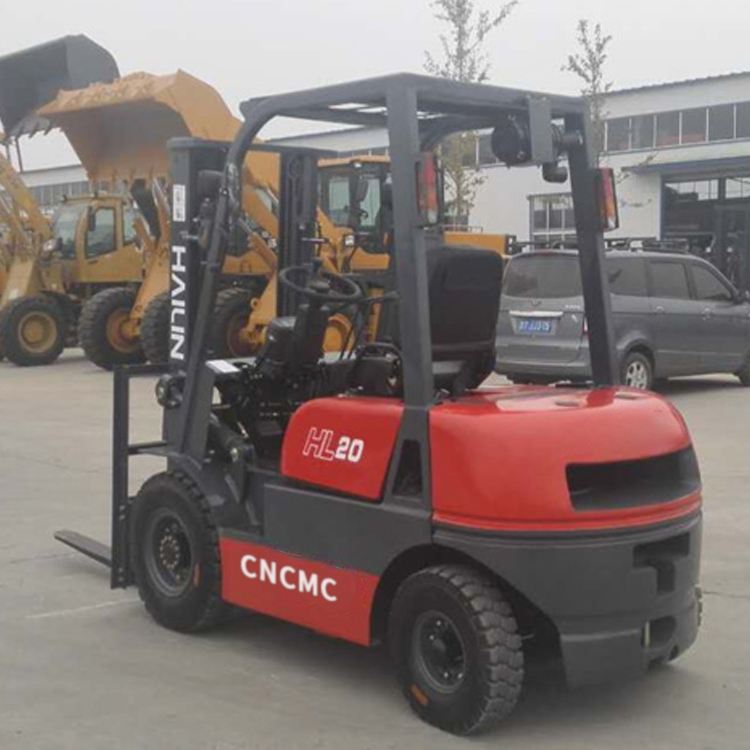

Product detail pictures:
