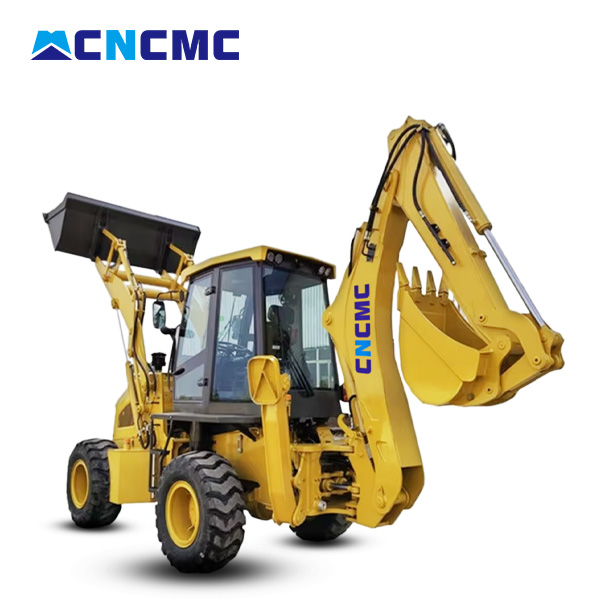

CNCMC Best Selling Articulated TB470 75Kw 4X4 Small Backhoe Loaders

Introduction:

  • Optimal Power and Efficiency

With 75 kW of power, it delivers strong performance for digging, loading, and lifting tasks while maintaining good fuel efficiency.

  • Multi‑Functionality

Equipped with a front loader and rear excavator, it can handle loading, digging, grading, breaking, and lifting—reducing the need for multiple machines.

  • Excellent Maneuverability

Its compact size and tight turning radius make it ideal for urban construction, narrow job sites, and utility work.

  • Lower Operating Costs

The 75 kW engine offers a balance of power and fuel economy, and maintenance costs are generally lower compared to larger excavators or loaders.

  • Easy Mobility and High Utilization

As a self‑propelled machine, it can move between job sites without a trailer, improving efficiency and reducing downtime.


Product Detail

Product Tags

The Main Performance Parameter of Backhoe Loader TB470
Overall Operating Weight
7640KG
Final Reducer
Single Stage Final Reducer
Transport Dimension
Rated Loader of Axle
7.5t
L*W*H(mm)
5910×2268×3760
Transmission System
Wheel base
2250mm
Torque Converter
Min. Ground Clearance
300mm
Model
YJ280
Bucket Capacity
1.2m3
Type
Single-stage Three Elements
Breakout Force
38KN
Max. Efficiency
84.4%
Loading Lifting Capacity
2500KG
Inlet Pressure
0.4Mpa—0.55 Mpa
Bucket Dumping Height
2742mm
Outlet Pressure
1.2Mpa—1.5 Mpa
Bucket Dumping Distance
1062mm
Cooling Method
Oil-cooling Pressure Circulation
Digging Depth
52mm
Gearbox
Backhoe Capacity
0.3m3
Type
Fixed Shaft Power Transmission
Max. Digging Depth
4082mm
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Swing Angle of Excavator Grab
190o
Gears
Two Gears Ahead, Two Gears Astern
Max. Pulling Force
39KN
Max.Speed
22Km/h
Engine
Tyre
Model
CYD YC4A105Z-T20
Model
16/70-20
Type
In Line Direct injection Four-Stroke and Injection Combustion Chamber
Pressure of Front wheel
0.22 Mpa
Cylinder-Inside Diameter*Stroke
4-102×120
Pressure of Back Wheel
0.22 Mpa
Rated Power
75KW
Brake System
Rated Speed
2200r/min
Service Brake
Air Over Oil Caliper Brake
Min. Fuel Consumption
≤216g/km.h

External Type
Max.Torque
≥410N.M/1500r/min

Self-regulation
Displacement
3.9L

Self-balance
Steering System
Emergency Brake
Operation Power Implementing brake
Model of Steering Device
BZZ5-250

Manual Operation Power Terminating Brake
Steering Angle
±36 o
Hydraulic System
Min. turning radius
5018mm
Digging Power of Excavator Grab
46.5KN
Pressure of the system
12Mpa
Digging Power of Dipper
31KN
Axle
Bucket Lifting Time
5.4S
Manufacturer
Feicheng Axle Factory
Bucket Lowering Time
3.1S
Main Transmission Type
Double Reduction
Bucket Discharge Time
2.0S
