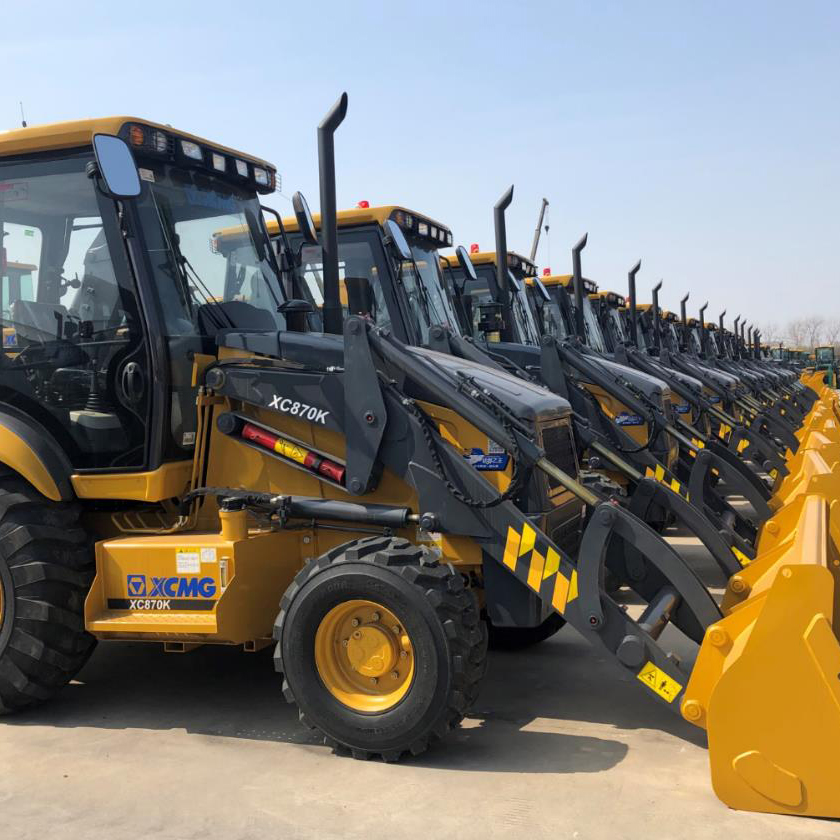

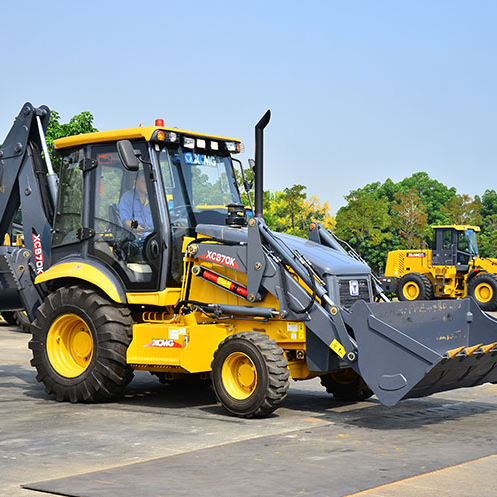

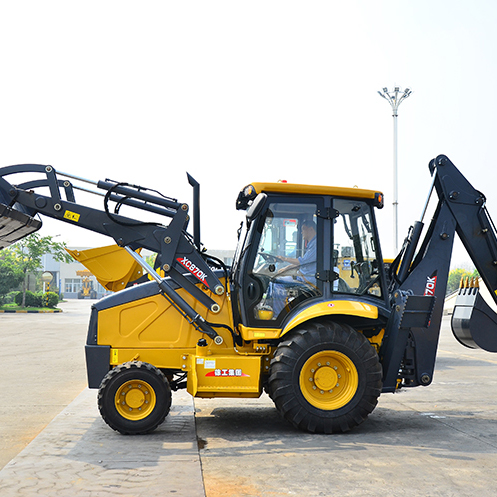

XCMG 2.5 ton Xuzhou factory hot selling backhoe loader mini back hoe wheel loader XC870K

Introduction:

XC870K is a K series backhoe loader newly launched by XCMG. This product is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and optimization of working device parameters, to further improve the comfort, safety, maintainability, reliability, support-ability, and economy of the product.


Product Detail

Product Tags

Video

Advantages and Highlights

The highest breakout force on the loading end is leading the industry by 15%~ 20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.

The high strength structural design features high operation efficiency, with the breakout force up to 63kN.

The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.

The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) lead the like products.

The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With op-enable side windows and rear window, the cab realizes broader visual field and comfortable

1
2
3
4
5
6
7
8

Specification

Description



Parameter Value

Unit

Chassis type



integrated



Drive style



4 drive/2 drive



Digging working device



middle



Outline dimensions(L×W×H)



7440×2350×3450

mm

Total weight



7600

kg

Max. travel speed



≥40

km/h

Wheelbase



2180

mm

Engine

Power

70-82

kw

Cummins/Deutz



Loading device

Bucket capacity

1

m3

Rated load

2500

kg

Max. breakout

66

kN

Max. discharge height

2770

mm

Max. discharge distance

755

mm

System pressure

24

Mpa

Digging device

Bucket capacity

0.3

m3

Max. digging radius

5460

mm

Max. digging depth

4425

mm

Max. digging force

63

kN

System pressure

24

Mpa

0.2m³
