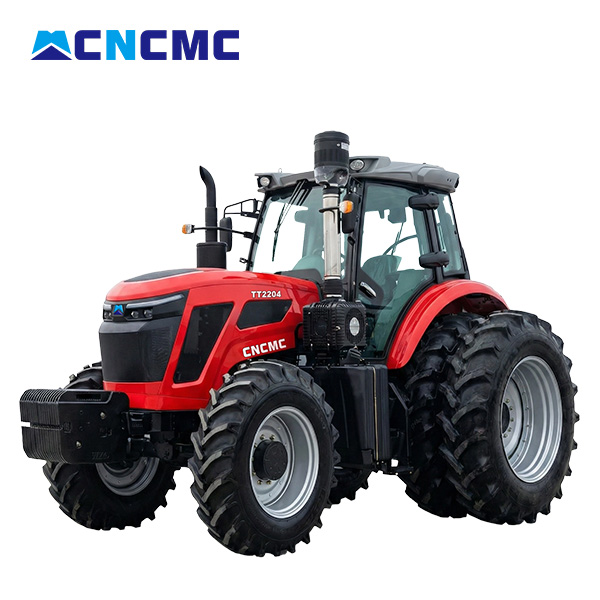

CNCMC CE Certification TT2204 220hp 4wd Large Size Wheel Farm Tractor
|
Dimension (L×W×H)
|
5800×2800×3350mm
|
||
|
Min.operating weight
|
7700kg
|
||
|
Wheelbase
|
3000mm
|
||
|
Wheel track (front/rear)
|
1720、1820、1940、2040、2140/1700mm
|
||
|
Engine
|
Model
|
/
|
YTO
|
|
Type
|
/
|
Vertical,water-cooling,four stroke,common rail
|
|
|
Qty of cylinders
|
cylinder
|
6
|
|
|
Rated power
|
HP/KW
|
220HP /161.8kw
|
|
|
Rated speed
|
r/min
|
2200
|
|
|
Drive train
|
Clutch
|
/
|
Single disc,dry,independent control,dual stage
|
|
Gearbox
|
/
|
TS16F+16R
|
|
|
Gear shift type
|
/
|
Synchronizer
|
|
|
Steering
|
Steering type
|
/
|
Full hydraulic steering
|
|
Brake
|
Brake type
|
/
|
Mechanical control,wet,disc
|
|
Walking device
|
Tire size(front/rear)
|
/
|
16.9-28/20.8-38
|
|
Working device
|
Suspension device type
|
/
|
Rear,one-point suspension
|
|
suspension device category
|
/
|
Category Ⅲ
|
|
|
Tillage Depth Adjustment
|
/
|
Height adjustment,floating control
|
|
|
Hydraulic output device
|
group
|
4
|
|
|
Standard PTO speed
|
r/min
|
8 keys or 6 keys、760/850or540/1000
|
|
