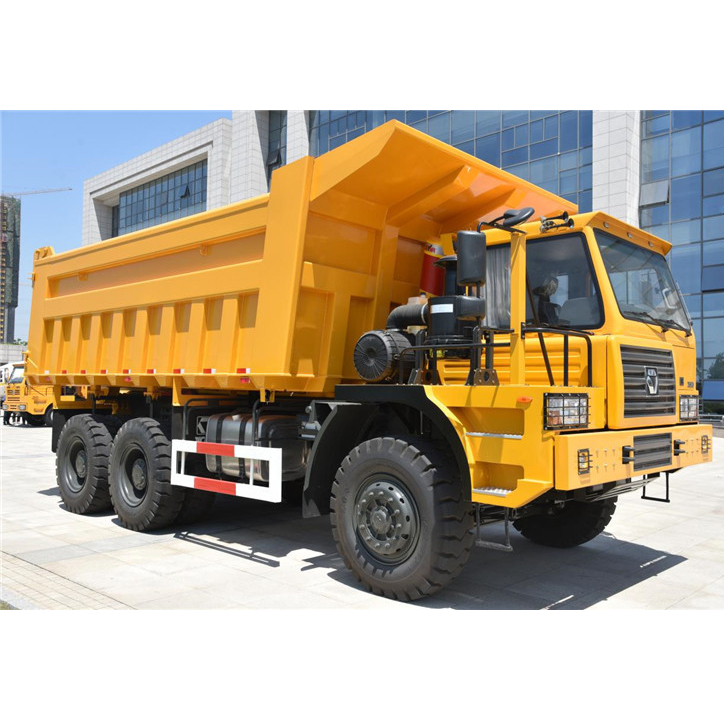

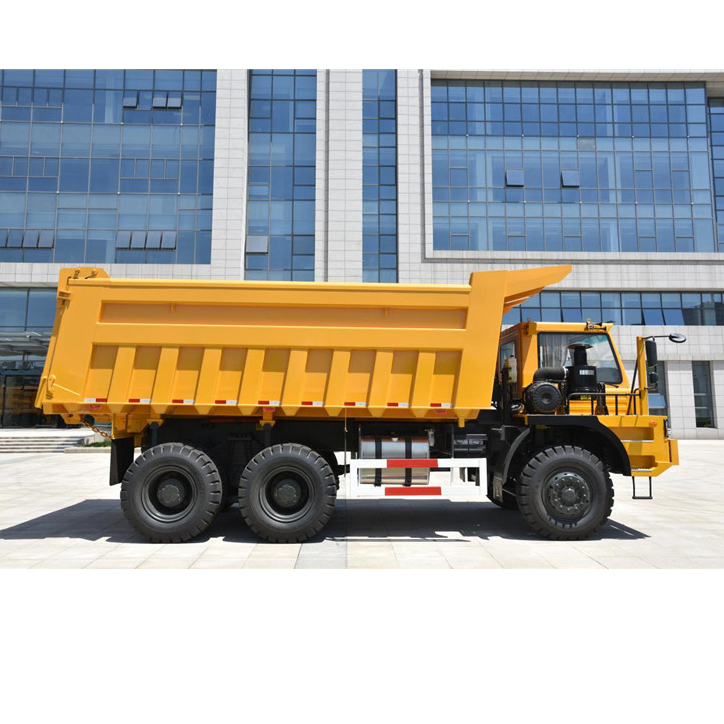

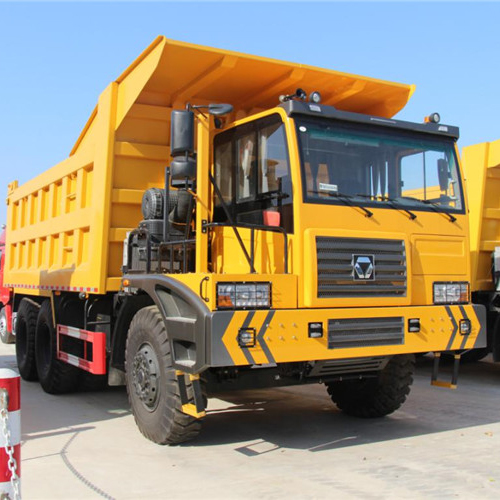

XCMG 70ton Offical XGA5900D3T Mining Tipper Off Road Dump truck Mining Truck

Introduction:

1. Qilong T-series dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type. This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.


Product Detail

Product Tags

Video

Characteristic

1. Qilong T-series dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type. This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.

2. After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions. It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.

3. In terms of power assembly, "Qilong" T-series heavy truck adopts domestic and foreign well-known high-power engine, optimizes the matching of accessory system, applies foreign well-known software to optimize the performance according to the use conditions of different models, reasonably matches with the transmission system, and improves the power and economic performance of the whole vehicle.

4. In the bearing system, "Qilong" T-series heavy truck according to the market segmentation and the use environment, pursues the good bearing life capacity and the appropriate smoothness. It meeting different user requirements about matching combination of suspension components assembly.

5. In the brake system, "Qilong" T-series heavy truck is designed to meet ECE regulations and gb12676, improve the brake system pressure, shorten the brake distance and improve the safety; adopt high-performance brake valve and quick connector to improve the system reliability.

Specification

ensions

Overall dimensions

Length

9235mm

Width

3485mm

Height

4005mm

Wheelbase

3850+1700 mm

Wheel tread

Front tire

2745mm

Rear tire

2526mm

Min. Clearance

410mm

Approach angle

38°

Departure angle

50°

Front overhang

1735mm

Rear overhang

1750mm

Cargo size

6200×3300×1650mm

Cab

Model

3.3m Left dislocation cab

Passengers

1

Engine

Model

WP12G460E310

Displacement

11.596L

Output power

338kW

Max. torque speed

2000N·m

Clutch

Model

Φ430 Pull-type diaphragm spring clutch

Operation

Hydraulic manual

Transmission

Model

9JSD220B

PTO

QH70

Operation

Flexible shaft

Forward ratio

10.06/6.71/4.92/3.36/2.65/2.00/1.47/1.00/0.79

Reverse ratio

10.51

Driven axle

Model

35T PENGXIANG

Main reducer ratio

15.66/17.62

Brake type

Drum

Differential lock

Inter-axle differential lock

Front axle

Model

19T PENGXIANG

Brake type

Drum

Wheel

Rim

11.25/12.0-25

Tire

16.00-25

Frame

Model

Box beam

HxW-t

480mm

Frame width

1150mm

Suspension

Front

Type

Leaf spring

Leaf springs

15

Rear

Type

Balanced suspension

Leaf springs

17

Steering

Model

Φ120 Circulating ball type hydraulic power

Steering Ration

23.27

Max pressure of pump

17MPa

Brake System

Rated pressure

1MPa

Service brake system

Dual circuit pneumatic braking

Parking brake system

Spring energy storage air brake

Auxiliary braking system

Engine exhaust brake+Retarder

Electrical system

Voltage

24V

Generator power

2.2kw

Battery voltage/capacitance

2×12V/165Ah
