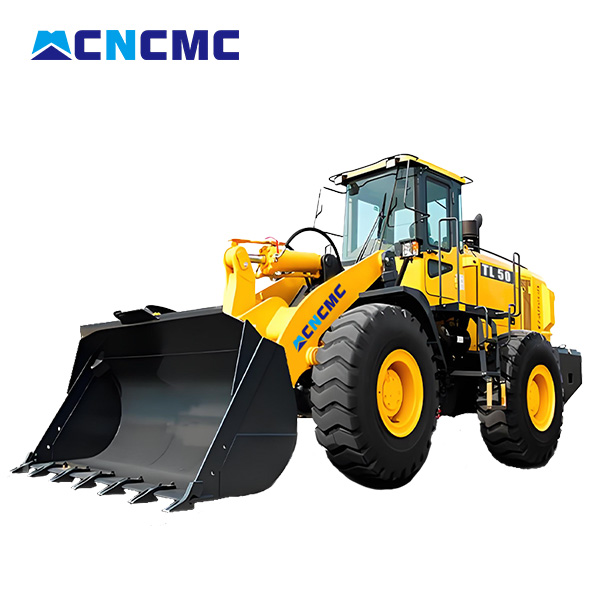

CNCMC Direct Sales TL50 5 Ton 162kw 3.1m³ Bucket Medium Wheel Loader
|
Dimensions
|
Overall length (bucket on the ground)
|
8020 mm
|
|
Overall width(outside of wheels)
|
2800 mm
|
|
|
Bucket width
|
2946 mm
|
|
|
Overall height
|
3450 mm
|
|
|
Wheel base
|
3100 mm
|
|
|
Min. ground clearance
|
450 mm
|
|
|
Specification
|
Rated load
|
5000 kg
|
|
Rated bucket capacity
|
3.1m³
|
|
|
Operating weight
|
16500kg
|
|
|
Min. turning radius(outside of the tyre)
|
5970 mm
|
|
|
Turning angle of the chassis
|
38 º
|
|
|
Performance
|
Travelling speed
|
Forward:11.7/40.3 km/h
Reverse:15.9km/h |
|
Max. tractive force
|
170kN
|
|
|
Grade ability
|
30 º
|
|
|
Dumping angle
|
45 º
|
|
|
Dumping clearance
|
3136mm
|
|
|
Dumping reach
|
1171mm
|
|
|
Total cycling time
|
≤11 s
|
|
|
Engine
|
Model
|
WD10G220E23
|
|
Type
|
Water cooled, 4 stroke, 6 cylinder in line, turbocharged
|
|
|
Rated power
|
162kW
|
|
|
Max. torque
|
900 N.m
|
