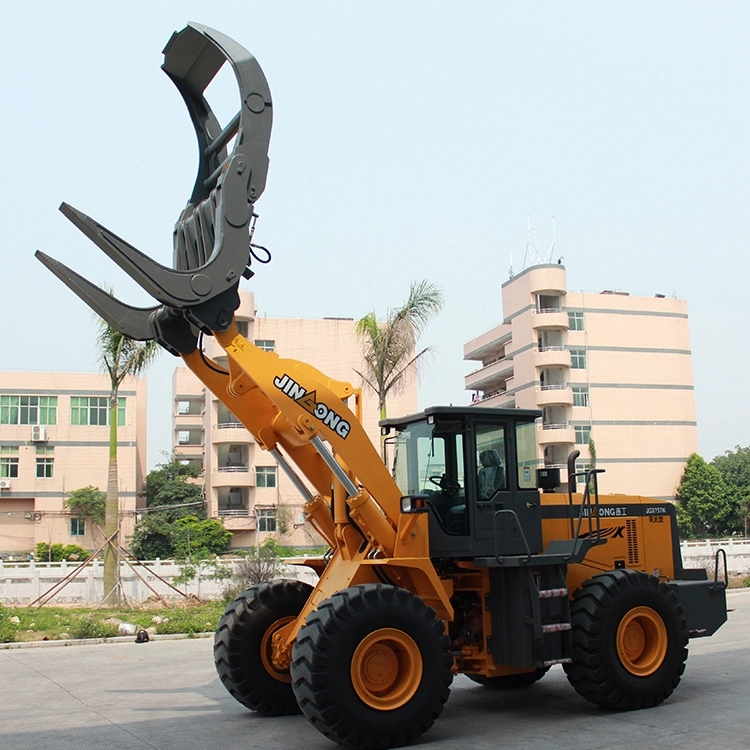

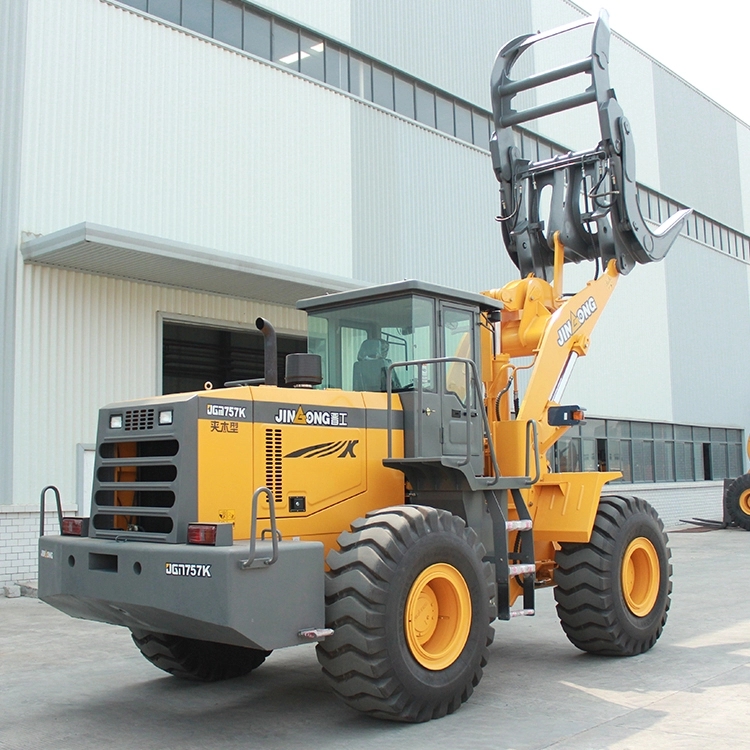

Jingong 5 ton JGM757-lll Cane Skid Steer Loader For Sale
Features:
| 1. Self produced front and rear frames, heat treatment with high rigidity |
| 2. Powerful engine with global warranty and parts service |
| 3. Competitive price with high performance |
| 4. Real warranty supplied by original manufacturer |
| 5. More than 10 years experiences |
| ormance
|
rated load | 5000kg |
| overall weight | 17300kg | |
| rated bucket capacity | 3m3 | |
| maximum tractive force / breakout force | 160KN /≥170KN | |
| maximum grade ability | 35° | |
| maximum dump height / max dump reach | 3100mm / 1250mm | |
| overall dimension (L×W×H) | 7782×2990×3410mm | |
| minimum turning radius | 6640mm | |
| Engine
|
model | WEICHAI WD10G220E23 |
| type | lnline water cooling dry cylinder injection | |
| No. of cylinder-bore/stroke | 6-126×130mm | |
| rated power | 162kw--2400r/min | |
| maximum torque | 860N.m | |
| min fuel-consume ratio | ≤215g/kw.h | |
| Transmission system | torque converter / maximum speed | YJ375 / 38km/h |
| gearbox mode | Power shift normally engaged straight gear | |
| gear shift | 2 forward shift 1 reverse shift | |
| Drive axles | main reducing spiral | bevel gear grade 1reduction |
| decelerating mode | planetary reduction,grade 1 | |
| wheel base (mm) / wheel tread | 3230mm /2250mm | |
| minimum ground clearance | 450mm | |
| Hydraulic system | system working pressure | 18MPa |
| boom lifting time / total time | 6.3±0.2s / 10.95±0.5s | |
| fuel tank capacity | 270 | |
| function of leveling automatically | yes | |
|
Brake system |
service brake / | air over hydraulic disc brake on 4 wheels / |
| parking brake | manual parking brake | |
|
Tyre |
type specification | 23.5-25 |
| front tyre pressure / rear tyre pressure | 0.4Mpa /0.35Mpa |
