Sany 2.6Ton 0.6CBM Bucket Mini Excavator SY26U(T4f) Factory Price SY16C/SY18C/SY26U/SY35U/SY50U

Introduction:

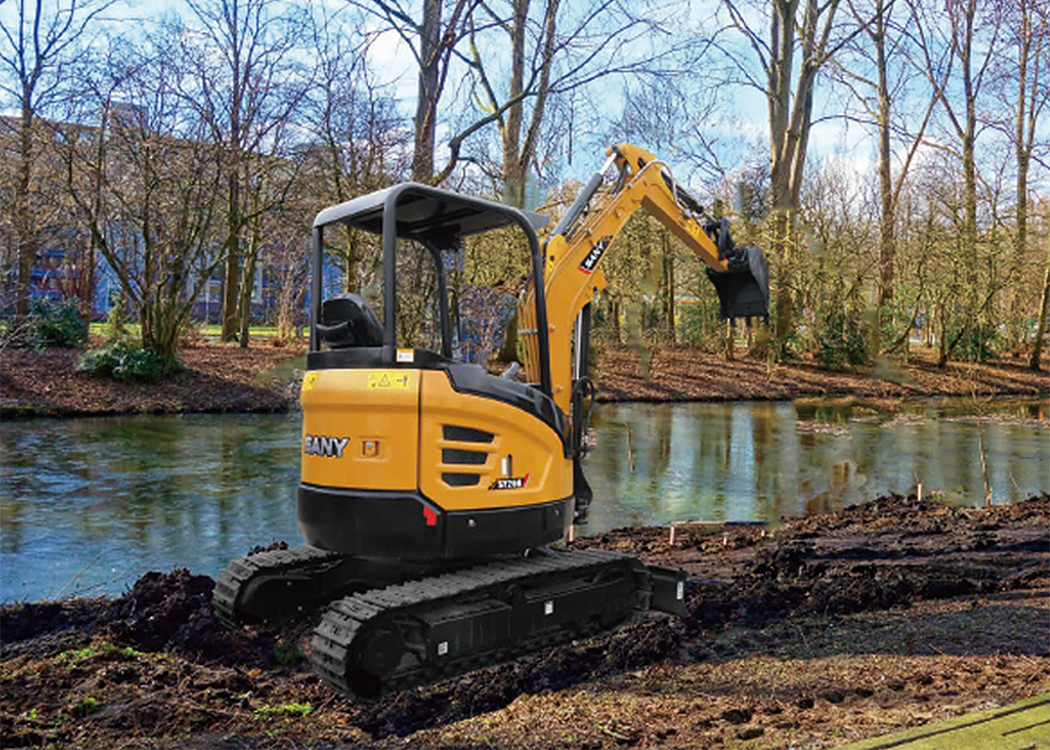

The SY26U is equipped with a deflection working device, which can realize direct excavation work similar to the wall root zone without frequent movement of the fuselage. With the zero-rotation structure at the tail, the operation in narrow areas can be handled freely.


Product Detail

Product Tags

Video

Features

High Performance
Strong power ensures reliability in tough working conditions.
High Reliability
Load Sensitive Flow Distribution System: Senses micro changes of the load and adjusts flow and pressure in real time; optimized main valve core for perfect synergism between actuators and precise control.
Strong Adaptability to Various Situations
Changeable Steel Track/ Rubber Track. Cabin or canopy for your to choose

未标题-2

Product parameter

1. 835H is a new generation of 3T products with beautiful appearance, excellent performance, solid and reliable, high efficiency and energy saving.
2. Equipped with planetary gearbox, it has large capacity and good controllability.
3. More efficient cooling system, fully meet the needs of continuous operation in harsh environment.
4. With safe and comfortable driving environment, first-class maintenance convenience, greatly improve the driving experience, reduce labor intensity.

The enlarged cab allows gives the operator excellent 360 degree visibility including the working instruments, and the rear of the machine. This makes operation easier and much safer.

未标题-1_01
未标题-1_02
未标题-1_03

Parameter

Model

SY16C

SY16C(T4f)

SY18C(T4f)

SY26U(T4f)

SY35U(T4f)

SY35U

SY50U(T4f)

Arm Digging Force

9.2KN

9.2KN

9.2KN

14.39KN

18.2KN

18.2KN

22.9KN

Bucket Capacity

0.04m³

0.04m³

0.04m³

0.06m³

0.12m³

0.12m³

0.15m³

Bucket Digging Force

15.2KN

15.2KN

15.2KN

27.4KN

30.4KN

30.4KN

32.5KN

Carrier Wheel on Each Side

/

/

/

1

1

1

1

Engine Displacement

0.854L

1.267L

1.267L

1.267L

1.6L

1.642L

2.19L

Engine Model

3TNV70

3TNV80F

3TNV80F

3TNV80F

3TNV88 Tier 4 final

3TNV88

4TNV88-PSY

Engine Power

10.3kW

14.6kW

14.6kW

15.2kW

18.2kW

19.6kW

29.1kW

Fuel Tank

23L

23L

23L

34L

40L

50L

78L

Hydraulic Tank

21L

21L

21L

30L

40L

40L

52L

Operating Weight

1.85T

1.75T

1.85T

2.76T

3.86T

3.78T

5.3T

Radiator

3.8L

3.8L

3.8L

2.4L

6.7L

6.5L

4.2L

Standard Boom

1.81m

1.81m

1.81m

2.1m

2.54m

2.54m

2.7m

Standard Stick

1.13m

1.13m

1.13m

1.3m

1.4m

1.4m

1.5m

Thrust Wheel on Each Side

3

3

3

3

4

4

4

Gradeability

58%

30°

30°

25%

58%

30°

30°

Rated power

10.3/2200 kW/rpm

14.6/2400 kW/rpm

14.6/2400 kW/rpm

15.2/2500 kW/ rpm

20.4/2200 kW/rpm

18.2/2400 kW/rpm

29.1 / 2400 kW/rpm

Max. torque

64.7 Nm / 1800rpm

64.7 Nm / 1800rpm

64.7 Nm / 1800rpm

64.7 Nm/1800rpm

94.2 Nm / 1320rpm

94.2 Nm / 1320rpm

144.9 Nm / 1500rpm

Transport dimensions

3575*980*2420

3575*980*2420

3575*980*2420

4285*1550*1620

4915*1720*2515

4915*1720*2515

5390*1960*2630

Product Display

2352253 (3)
2352253 (2)
2352253 (1)
