BROOKMAN Excavator clamshell bucket

Introduction:

*Clamshell bucket is the bucket that can open and close to grasp the sediment and all kinds of bulk cargo. It is a kind of spreader that mainly rely on the left and right two combined bucket or multiple jaw opening crawl and unloading material.

* The grab overall structure is light and durable, offering high grabbing ratio, strong

closing force and high material filling rate.


Product Detail

Product Tags

Video

Product Description

The clamshell bucket which fitted to an excavator have powerful digging characteristics.Ideal for earth moving,ground works and road construction we have a range of shells available for different applications. The Clamshell bucket is driven by hydraulic cylinder to open and close, easy operation and good control of the strong digging force,especially good for limited working space.

Application:

Apply to groove, such as the foundation ditch limited,space mining and mud,sand coal,gravel loaded,and can also be used to ship,train,automible loading and unloading the above material.

Product parameter

Model

unit

Shell bucket (non-rotating)

apply to

T

 5 - 8

20

30

35

capacity

mm

0.35

1

1.5

1.8

bucket width

800

1000

1160

1400

Blade thickness

mm

NM400/T16

NM400/T20

NM400/T20

NM400/T20

Side board thickness

mm

Q345/T14

NM400/T18

NM400/T20

NM400/T20

length

mm

1191

1898

2028

2028

width

mm

840

1076

1240

1480

height

mm

1676

2718

2877

2739

weight

kg

467

1340

1538

1805

open size

mm

1424

2041

2207

2207

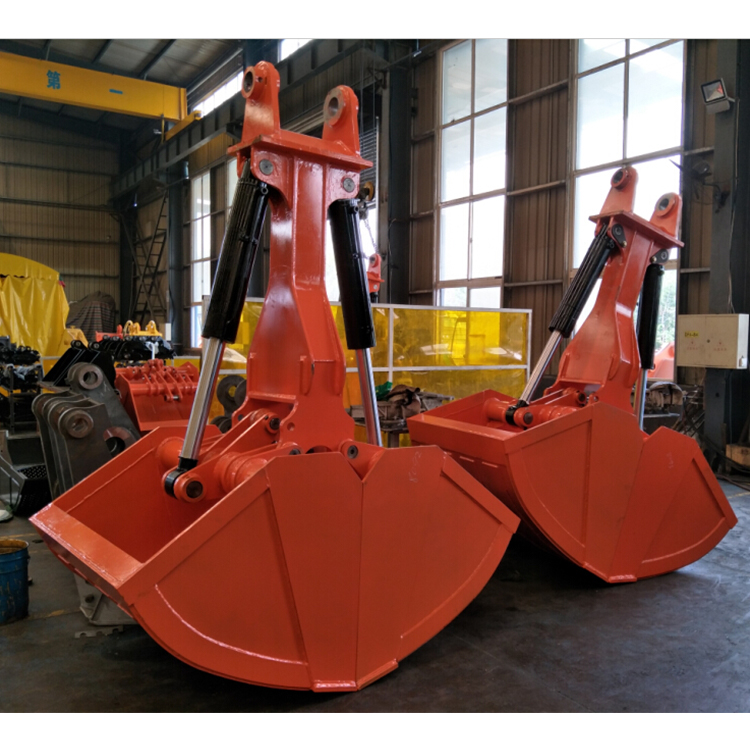

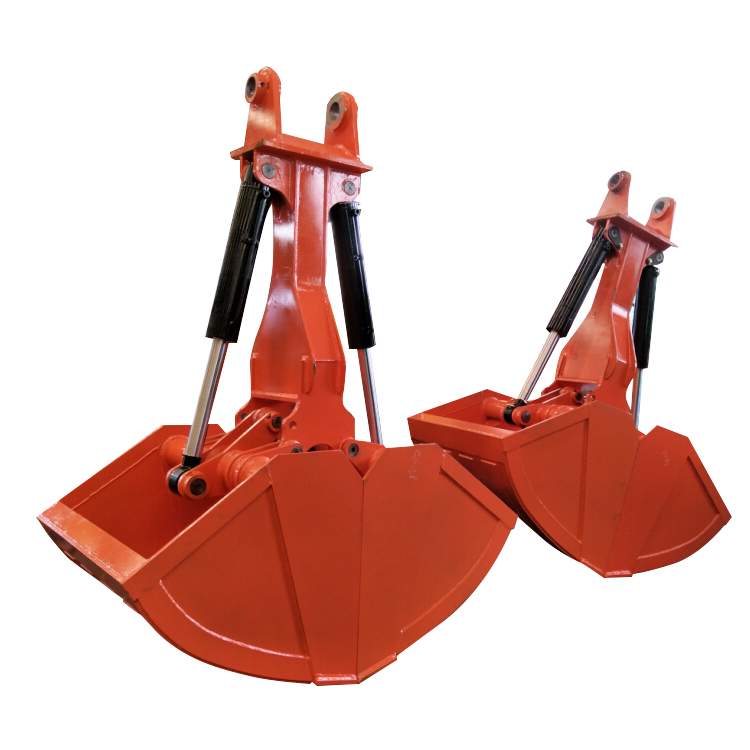

Product Image

shell bucket (2)
shell bucket (4)
shell bucket (3)
shell bucket (1)
