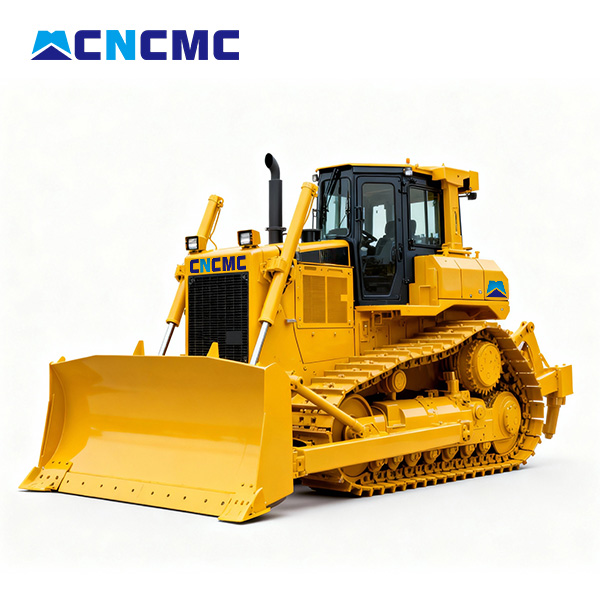

CNCMC TD32 320Hp High-Drive Crawler Bulldozer

Introduction:

  • High Power and Strong Traction

TD32 delivers exceptional pushing force and traction, enabling efficient movement of heavy soil, rock, and debris.

  • Excellent Dozing Performance

The powerful engine and optimized blade design provide superior dozing, spreading, and leveling capabilities, reducing the number of passes required.

  • High Efficiency and Productivity

With strong power and responsive controls, the bulldozer works faster and more effectively, improving overall productivity on large‑scale projects.
Good Stability and Durability
The robust undercarriage, heavy‑duty frame, and balanced weight distribution ensure stable operation in tough conditions and extend machine life.

  • Wide Range of Applications

Suitable for land clearing, road construction, site preparation, mining, and earthmoving, making it a versatile and essential machine for heavy construction.


Product Detail

Product Tags

Model

TD32
specifications

Dozer

Tilt
Operating weight(including ripper)
kg
36800
Ground pressure
kpa
94
Track gauge
mm
2083
Gradient
°
30/25
Min. ground clearance
mm
556
Dozer capacity
11.24
Blade width
mm
3940
Max. digging depth
mm
582
Overall dimensions(including ripper)
mm
7930×3045×3549
Engine

Type

NTA855-C360S10
Rated revelation
rpm
2100
Engine power
kw
257
Torque storage coefficient
%
20
Undercarriage system

Type

Swing type of sprayed beam.Suspended Structure or equalizer bar
Number of track rollers(each side)

8
Pitch
mm
216
Width of shoe
mm
560
Gear

Forward
km/h
0-10.8
Backward
km/h
0-13.9
Implement hydraulic system

Max. system pressure
Mpa
20
Pump type

High perssure gears pump
System output
L/min
220
