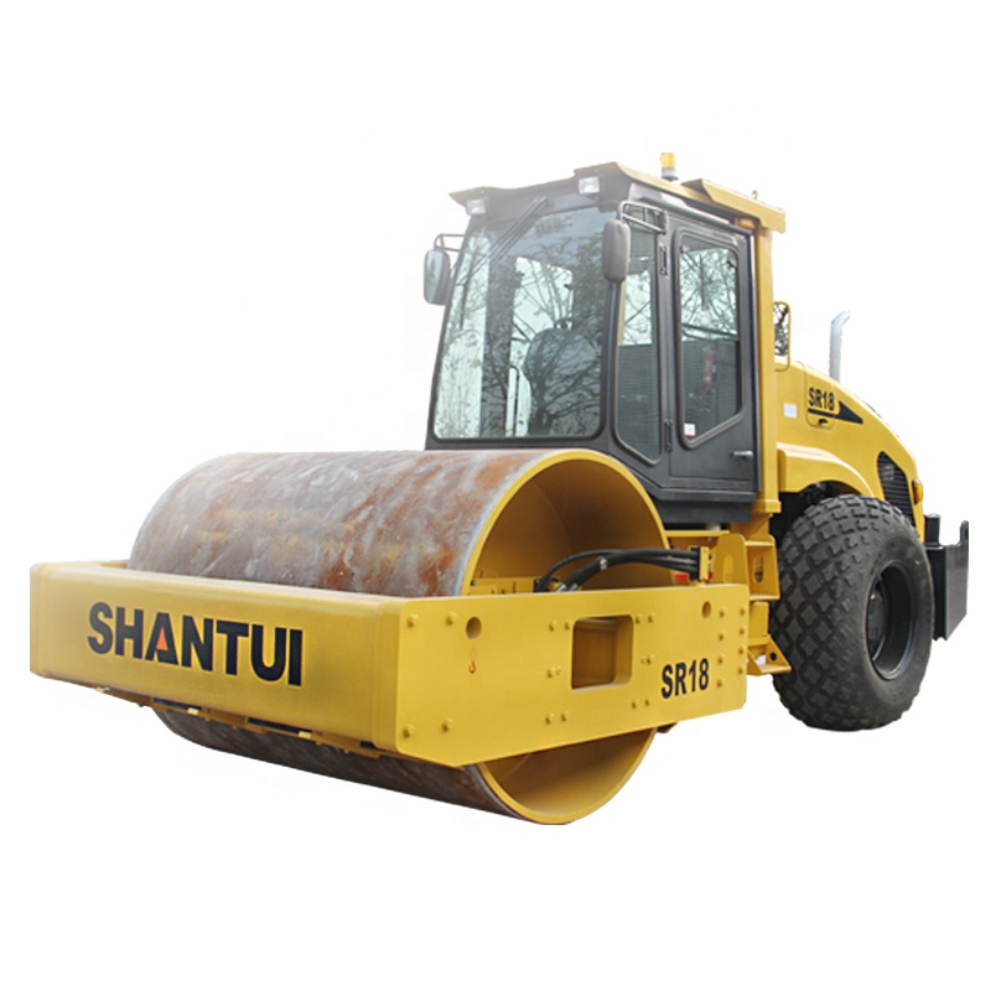

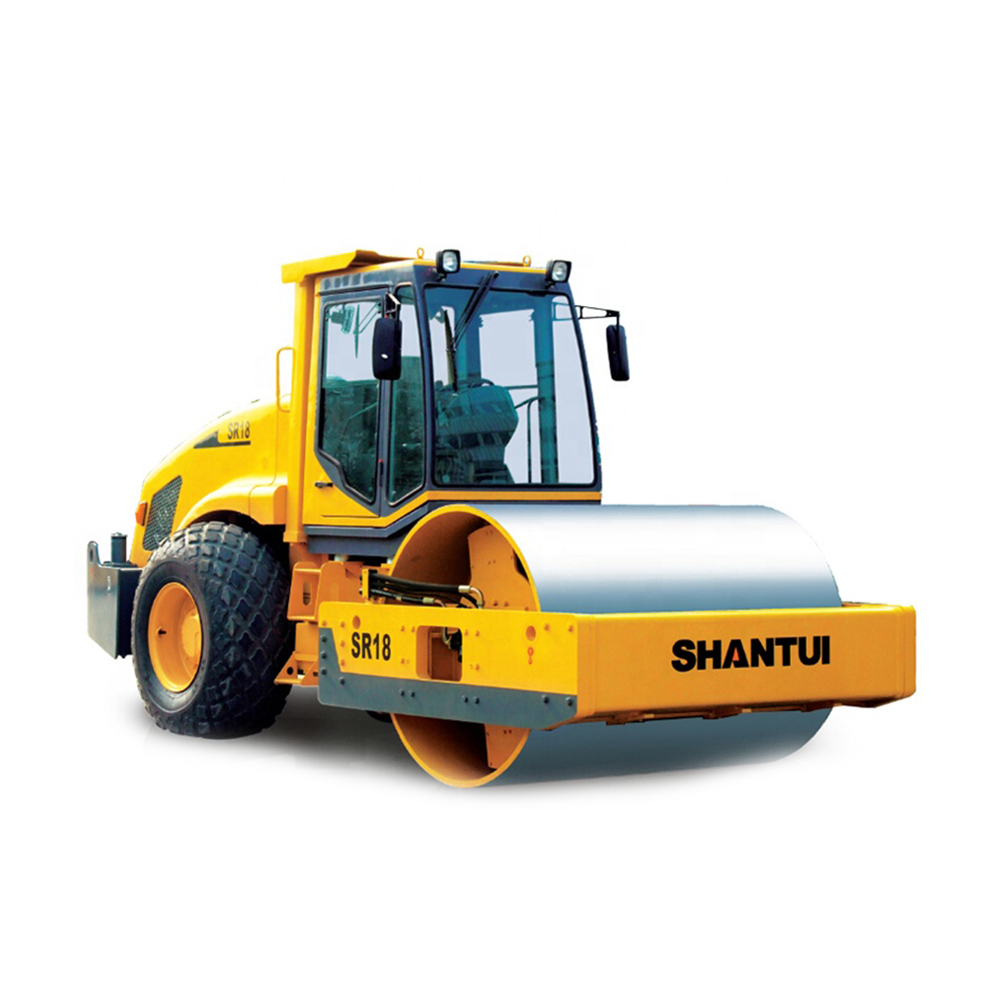

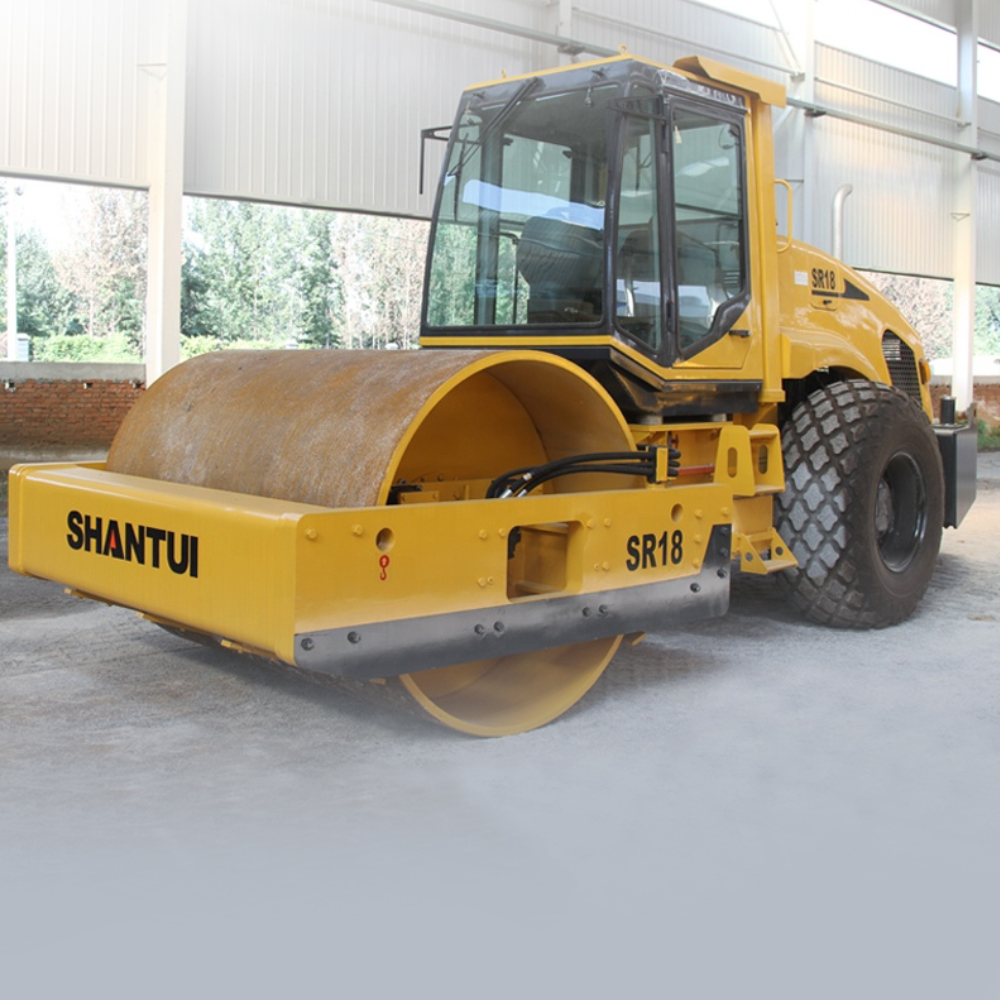

Shantui 18ton Construction machine SR18 single drum vibratory road roller

Introduction:

Shantui’s high grade and high standard choice of critical parts of the roller (including engine, drive parts, and hydraulic parts) guarantees the performance and reliability of the product. The professional design on the static linear pressure, vibration amplitude, and vibration frequency and the appropriate speed and gradeability performance realize maximum working efficiency while providing high compacting performance.Finally, it has the extra-added touch of having a very attractive design flow to its outward appearance.


Product Detail

Product Tags

Video

Engine

1
2
3

The standard Weichai WP series turbocharged diesel engine features outstanding performance, high reliability, high fuel economy, and strong power output, which can maintain the whole machine at optimal compacting status, guaranteeing construction quality.

The optional Cummins B series engine features reasonable strength, compact and simple structure, less types and numbers of parts, light weight, and high efficiency.

1

Vibratory Drum

The professional design and manufacturing guarantee outstanding compacting performance, meeting the construction requirements of various work sites, and features easy service and maintenance.

1. Vibratory drum
2. Eccentric block
3. Lubricating oil compartment
4. Special heavy-duty bearing
5. Rubber damper

1

Parameter

MODEL SR10 SR12-5 SR16 SR18 SR20-3 SR26-5
Operating weight(kg) 10120 12000 16450 18000 19535 25800
Axle load,front (kg) 5520 7000 10000 11350 12713 17000
Static linear load, front/rear(N/cm) 259 327 468 530 595 779
Working width(mm) 2130 2110 2140 2140 2140 2140
Minimum turning radius(mm) 5880 5500 5600 5800 6100 6000
Drum diameter(mm) 1500 1550 1550 1550 1550 1600
Vibration frequency 30/36 30/33 29/32 29/33 28/33 27/30
high amplitude/low amplitude(Hz)
Rated amplitude,high/low (mm) 2.0/1.0 1.9/1.02 1.8/0.8 1.75/0.95 1.86/0.93 1.8/1.1
Centrifugal force, high/low(KN) 270/180 270/175 300/167 310/215 370/255 352/265
Steering angle(°) ±36 ±36 ±36 ±36 ±36 ±36
Oscillating angle(°) ±12 ±12 ±12 ±12 ±10 ±10
Maximum climbing ability(%) 48 48 45 45 45 45
Forward speed(km/h) 1 0–5.3 0-5.3 0-5.6 0-5.2 0-4
2 0–9.9 0-9.9 0-5.9 0-7.1 0-7.2 0-5.4
3 0-9 0-8.7 0-12.7 0-9.5
4 0-13.5
Reverse speed(km/h) 1 0–5.3 0-5.3 0-5.9 0-5.6 0-5.2 0-4
2 0-9.9 0-9.9 0-9 0-7.1 0-7.2 0-5.4
3 0-8.7 0-12.7 0-9.5
4 0-13.5
Engine model Weichai Weichai DEUTZ CUMMINS CUMMINS Shangchai CUMMINS
P4G110E220 WP6G140E22 6BT5.9-C150 6BT5.9 SC8D190.G2 6CTAA8.3-C215
Rated power (kW) 82 105 112 132 140 160
Rated speed (rpm) 2200 2200 2500 2500 2200 2200
Padfoot,number
Height of the padfoot(mm)
Overall length(mm) 5860 6034 6092 6093 6232 6501
Overall width(mm) 2305 2275 2382 2410 2422 2562
Overall height(mm) 3225 3214 3104 3132 3372 3258

Product Display

3

Vibratory Hydraulic System

The use of hydraulics from renowned brands provides double-frequency and double amplitude compacting performance of the equipment while ensuring high reliability.

1

Cab

Comfortable driving environment Streamline appearance
The streamlined design of the rear hood not only promotes the aesthetics of the whole machine, but also provides the operator with an extensive visual field so that the outer edges of rear wheels and the rear half of the whole machine are visible to enhance the working safety.

The traveling of the machine is controlled by a single lever and the steering of the machine is controlled by a light and handy steering wheel to effectively promote work efficiency, reducing the fatigue of the operator.

The vibration operation is controlled by a one-touch switch and the comfortable and solid seat can be adjusted back and forth.

The left and right tilting armrest and retractable seat belt assure comfort and safety.

The driver’s cab can be optionally equipped with an air conditioner to provide a comfortable work environment.

The three-stage damping system relieves the operator from the interference of the vibration source, relieves the fatigue feeling, and promotes overall work efficiency.

1

Maintenance

Large angle opening hood, 8-point central pressure measuring system, maintenance-free battery, real-time monitoring of pressures and temperatures, and reasonable arrangement of diesel and working oil tanks enable Shantui rollers to have excellent maintenance performance, shortening the shutdown time, and improving the utilization rate of the machine.

1
