Power system

● Equipped with SC8DK electronic control engine to meet the national phase III emission requirements of non-road machinery, with strong power, high efficiency and energy saving, and low maintenance cost;

● The torque reserve coefficient is large, and the rated power reaches 105kW;

● Improved air filter and intake and exhaust systems, with a filtration accuracy of 99%, effectively prolonging the service life of the engine.

Transmission system

● The transmission system is perfectly matched with the engine curve, the high efficiency zone is wider, and the transmission efficiency is higher;

● Shantui's self-made transmission system has been tested by the market for a long time, with stable performance and reliable quality.

Driving Environment

● Hexahedron cab, large internal space and wide field of vision, FOPS/ROPS can be configured as required, safe and reliable;

● Electronic control of hand and foot throttle makes the operation more precise and comfortable;

● Equipped with intelligent display and control terminal, heating and cooling air-conditioning, etc., to provide a richer humanized driving experience, allowing you to know the system status at any time, smart and convenient.

Work Adaptability

● The stable and reliable chassis system of Shantui's mature products is suitable for various harsh working conditions;

● The grounding length is long, the ground clearance is large, the driving is stable, and the passability is good;

● Sanitation shovel, ripper, universal shovel, etc. can be configured according to specific working conditions, with strong operational adaptability, and optional LED work lights to enhance night construction lighting capabilities, making it safer and more reliable.

Easy Maintenance

● Structural parts inherit the excellent quality of Shantui's mature products;

● The electrical wiring harness adopts corrugated pipe protection and line splitter to split the line, with high protection level;

● The fuel filter element and air filter have the same side design, one-stop maintenance.

Parameter

ITEM UNIT SD13
L×W×H (Ripper not included) mm 4492×3185×2950
Operating weight (Ripper not included) t 13.7
Engine - Shangchai SC8D143G2B1
Rated power kW/rpm 95.5/1900
Gradeability ° 30
Blade type - Straight tilt blade Angle blade
Blade width mm Straight tilt blade 3185×1090 Angle blade 3475×915
Dozing capacity m3 Straight tilt blade 3.7 Angle blade 3.4
Max drop below ground of blade mm 590
Lift height of blade mm 930
Ripper type - Three-shank ripper
Ripping depth of ripper mm 467
Lifting height of ripper mm 559
Number of carriers (each side) - 2
Number of track rollers (each side) - 6
Number of track shoes (each side) - 38
Width of track shoe mm 460
Track gauge mm 1880
Ground length and ground pressure mm/MPa 2365-0.063
Pitch mm 190
Forward speed km/h 0–3.2
0–5.9
0–9.8
Reverse speed km/h 0–3.9
0–7.1

Product Display

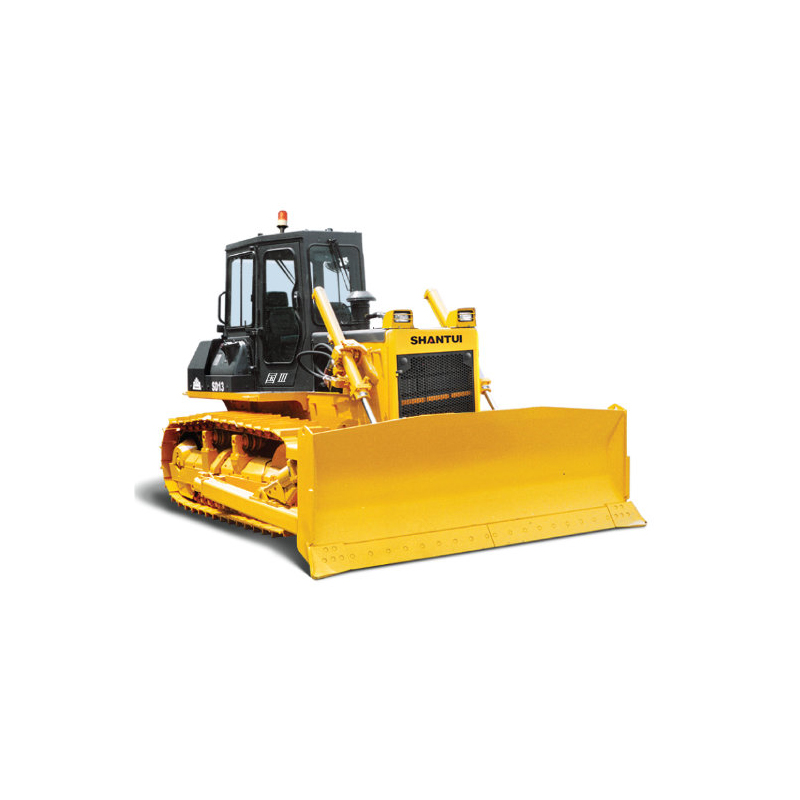

sd13

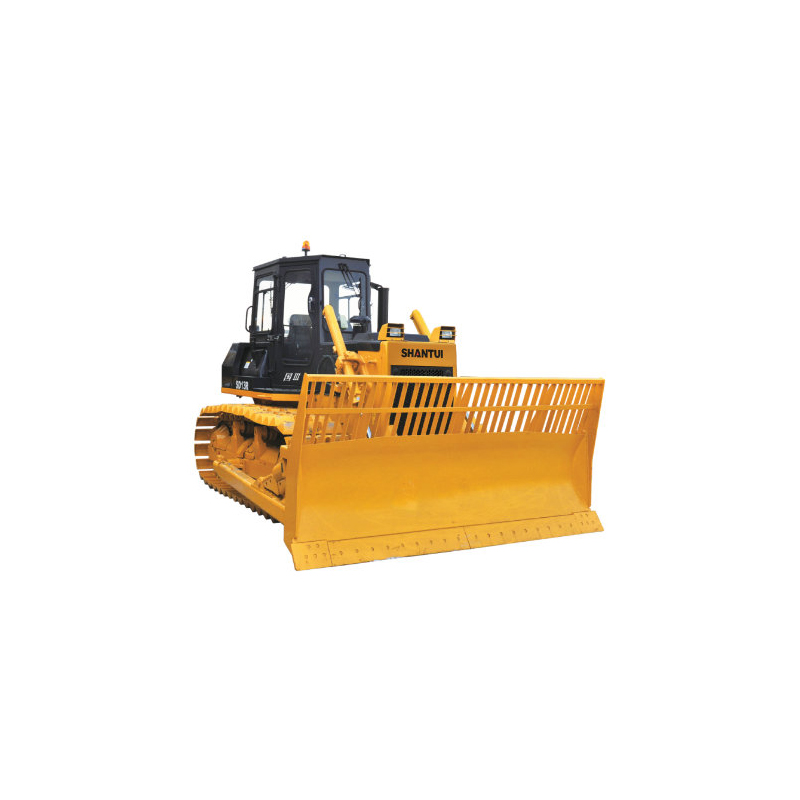

sd13s
