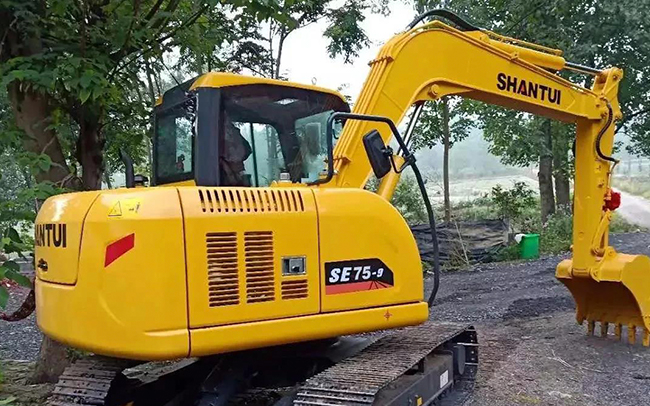

Shantui SE75 7 ton hydraulic small crawler excavator with grab price for sale

Introduction:

The SE75-9 hydraulic excavator features all-new body design and high beauty and elegance. The high-efficiency environmental-friendly engine is installed and the power system and the hydraulic system are highly matched to realize powerful performance and smooth operations of machine, with the maximum bucket breakout force at 66N and the maximum bucket arm breakout force at 44N


Product Detail

Product Tags

Video

Specification

Comparative item SE75(Standard version)
Overall dimensions
Overall length (mm) 6240
Ground length (During transport) (mm) 3750
Overall height (To the top of boom) (mm) 2660
Overall width (mm) 2260
Overall height (To top of cab) (mm) 2680
Ground clearance of counterweight (mm) 825
Minimum ground clearance (mm) 385
Tail turning radius (mm) 1880
Track length (mm) 2820
Track gauge (mm) 1800
Track width (mm) 2250
Standard track shoe width (mm) 450
Turntable width (mm) 2230
Distance from slewing center to tail (mm) 1850
Working range
Maximum digging height (mm) 6945
Maximum dumping height (mm) 4895
Maximum digging depth (mm) 4120
Maximum vertical digging depth (mm) 3620
Maximum digging distance (mm) 6360
Maximum digging distance at ground level (mm) 6205
Working device minimum turning radius (mm) 2040
Maximum lifting height of bulldozer blade (mm) 385
Maximum digging depth of bulldozer blade (mm) 225
Engine
Model V3307T (China III)
Type Water-cooled and turbocharged
Displacement (L) 3.3
Rated power (kW/rpm) 48.9/2000
Hydraulic system
Type of hydraulic pump Axial variable plunger pump
Rated working flow (L/min) 160
Bucket
Bucket capacity (m³) 0.25~0.35(0.32)
Swing system
Maximum swing speed (r/min) 11
Brake type Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN) 44
Bucket digging force (KN) 66
Operating weight and ground pressure
Operating weight (kg) 7650
Ground pressure (kPa) 34
Traveling system
Traveling motor Axial variable displacement plunger motor
Traveling speed (km/h) 2.9/4.8
Traction force (KN) 86.5
Gradeability 70%(35°)
Tank capacity
Fuel tank capacity (L) 155
Cooling system (L) 11
Engine oil capacity (L) 11
Hydraulic oil tank/system capacity (L) 96/130

CHARACTERISTIC

All-round champion
The SE75-9 hydraulic excavator features all-new body design and high beauty and elegance. The high-efficiency environmental-friendly engine is installed and the power system and the hydraulic system are highly matched to realize powerful performance and smooth operations of machine, with the maximum bucket breakout force at 66N and the maximum bucket arm breakout force at 44N
High-end system configuration
The load-sensing constant-power electro-proportional control hydraulic system can supply appropriate pressure and constant flow based on the load demand, featuring low energy loss.
The turbocharged engine can adapt to severe working conditions, featuring strong power and high torque.
The flow is distributed proportionally to realize good coordination of combination motions.
First-class hydraulic configuration
Enhanced working device
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The enhanced working device adapts to diversified severe working conditions
Drive sprockets, idlers, track rollers, carrier rollers, and tracks
30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and world’s leading technologies.
The world’s sophisticated forging and heat treatment processes guarantee stable and reliable quality
Intelligent electronic control and optimal power control
The intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover
Spacious and comfortable operating environment
The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator’s visual fatigue.
The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding
All-ground maintenances
The electric parts are centrally arranged to ease the checking and maintenances.
The filling of washing fluid, the replacement of air filter element, and the power master switch are easily accessible.
The fully openable engine hood is installed with locating mechanism to realize handy and safe opening, large engine compartment space, and easy maintenances.
The diesel strainer is installed remotely on the right door to make the maintenance easier.
The parallel radiator effectively avoids the overheating and eases the cleaning
Optional equipment of machine
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
Narrow bucket
Optional attachments
Crusher, ripper, timber grab, stone grab, hydraulic tamper, quick change coupling, and breaking hammer pipeline
