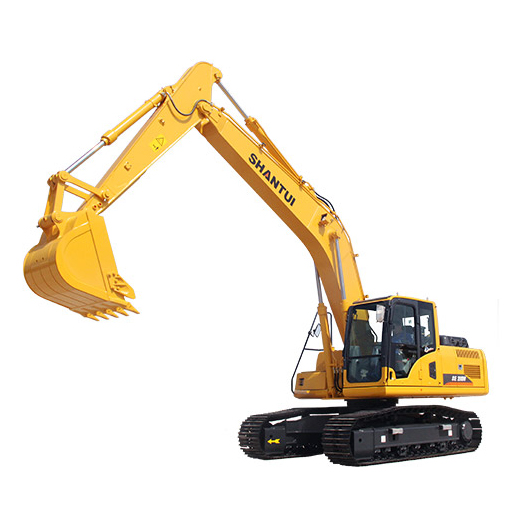

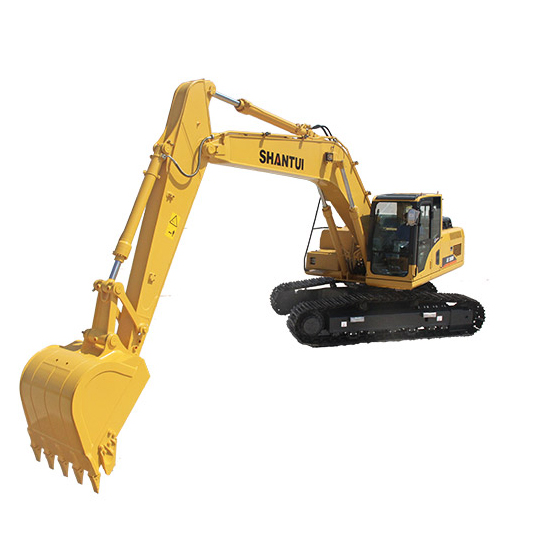

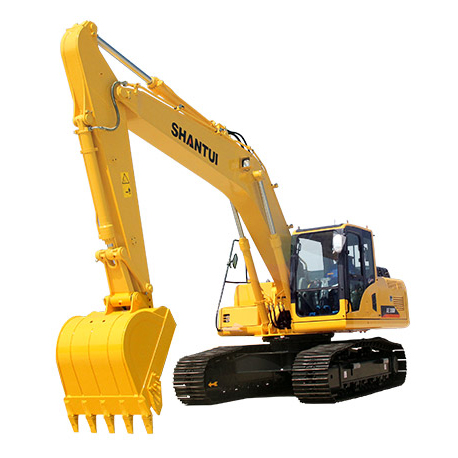

Shantui 21 Ton SE210W Excavator 0.9cbm New Excavator

Introduction:

Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, quick change coupling, and breaking hammer pipeline


Product Detail

Product Tags

Video

Specification

未标题-1_01
未标题-1_02
未标题-1_03
Comparative item SE210W (Standard version)
Overall dimensions
Overall length (mm) 9543
Ground length (During transport) (mm) 4860
Overall height (To the top of boom) (mm) 3039
Overall width (mm) 2800
Overall height (To top of cab) (mm) 2977
Ground clearance of counterweight (mm) 1120
Minimum ground clearance (mm) 470
Tail turning radius (mm) 2905
Track length (mm) 4160
Track gauge (mm) 2200
Track width (mm) 2800
Standard track shoe width (mm) 600
Turntable width (mm) 2726
Distance from slewing center to tail (mm) 2853
Working range
Maximum digging height (mm) 10029
Maximum dumping height (mm) 7320
Maximum digging depth (mm) 6541
Maximum vertical digging depth (mm) 5735
Maximum digging distance (mm) 9860
Maximum digging distance at ground level (mm) 9673
Working device minimum turning radius (mm) 3041
Maximum lifting height of bulldozer blade (mm) -
Maximum digging depth of bulldozer blade (mm) -
Engine
Model Weichai WP7(China III)
Type  6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L) 7.14
Rated power (kW/rpm) 116/2000
Hydraulic system
Type of hydraulic pump Variable displacement duplex plunger pump
Rated working flow (L/min) 2x218
Bucket
Bucket capacity (m³) 0.9
Swing system
Maximum swing speed (r/min) 11.5
Brake type Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN) 92.5/99.5
Bucket digging force (KN) 115/124
Operating weight and ground pressure
Operating weight (kg) 20500
Ground pressure (kPa) 45
Traveling system
Traveling motor Axial variable displacement plunger motor
Traveling speed (km/h) 3.3/5.4
Traction force (KN) 201
Gradeability 70%(35°)
Tank capacity
Fuel tank capacity (L) 360
Cooling system (L) 25
Engine oil capacity (L) 24
Hydraulic oil tank/system capacity (L) 250/420

CHARACTERISTIC

Optional attachments

Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, quick change coupling, and breaking hammer pipeline

Optional equipment of machine

Refueling pump

Cab warning lamp

Cab ceiling lamp

Cab overhead protective net

Cab front upper protective net

Cab front lower protective net

Rubber track

Narrow bucket

Quick and convenient maintenances

The fuel filter element, engine oil filter element, and pilot filter element are centrally arranged so that all maintenances and replacements can be completed from on same position.

The high-precision fuel filter element features high water capacity and powerful fuel adaptability and the electric fuel pumping function is provided for automatic fuel refilling and easy start.

With pneumatic struts, the engine hood can be opened and closed easily to realize handy opening, large opening angle, and easy maintenances and repairs.

The radiator features convenient maintenances and easy accessibility.

The filling of coolant and the replacement of air filter element are easily accessible to ease the checking and maintenances.

The tandem radiator effectively avoids the overheating and eases the cleaning

Spacious and comfortable operating environment

The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator’s visual fatigue.

The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.

The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding

Intelligent electronic control and optimal power control

The intelligent control system realizes high match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.

The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.

Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover

Drive sprockets, idlers, track rollers, carrier rollers, and tracks

30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and industry’s leading technologies

The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality

Enhanced working device

The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.

The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions

High-end system configuration

The high-adaptability turbocharged engine features high torque, high altitude adaptability, and high fuel adaptability.

The high-end reliable hydraulic system configuration reduces the energy loss and realizes high efficiency and energy-saving and good motion coordination
